Knitted fabric is highly sensitive to tension, creasing and uneven dye penetration during the dyeing process. Compared with woven fabric, knitted materials are more elastic and prone to deformation, making machine structure and fabric transport design critical factors for dyeing quality.

Wuxi Shin Tong Yunn provides specialized knitted fabric dyeing machine designed to achieve low tension fabric movement, uniform dye circulation and stable color consistency, helping dye houses improve fabric quality while increasing production efficiency.

Common Challenges in Knitted Fabric Dyeing

• During high-speed and high-capacity dyeing, knitted fabric often face the following issues:
• Excessive fabric tension leading to elongation or fabric breakage
• Creasing and rope marks caused by unstable fabric movement
• Uneven dye penetration and poor color saturation
• Tube-to-tube color difference (shade variation)
• Blockage caused by fiber lint accumulation in circulation systems

Addressing these challenges requires not only process control, but also machine structures specifically be optimized for knitted fabric.

Our Dyeing Solutions for Knitted Fabrics

Wuxi Shin Tong Yunn knitted fabric dyeing solutions focus on three key principles:

 Low Tension Fabric Transport

By optimizing fabric lifting height, rope path design and nozzle pressure balance, our machine significantly reduce mechanical stress on knitted fabric throughout the dyeing cycle.

High-Efficiency Dye Liquor Circulation

Advanced nozzle systems and circulation designs increase the number of dye liquor exchanges between fabric and bath, improving dye uniformity and color saturation while reducing processing time.

Stable and Controllable Process Parameters

Integrated temperature control, steam ratio regulation and lint removal system ensure consistent dyeing conditions from batch to batch.

Recommended Machine Model for Knitted Fabric Dyeing

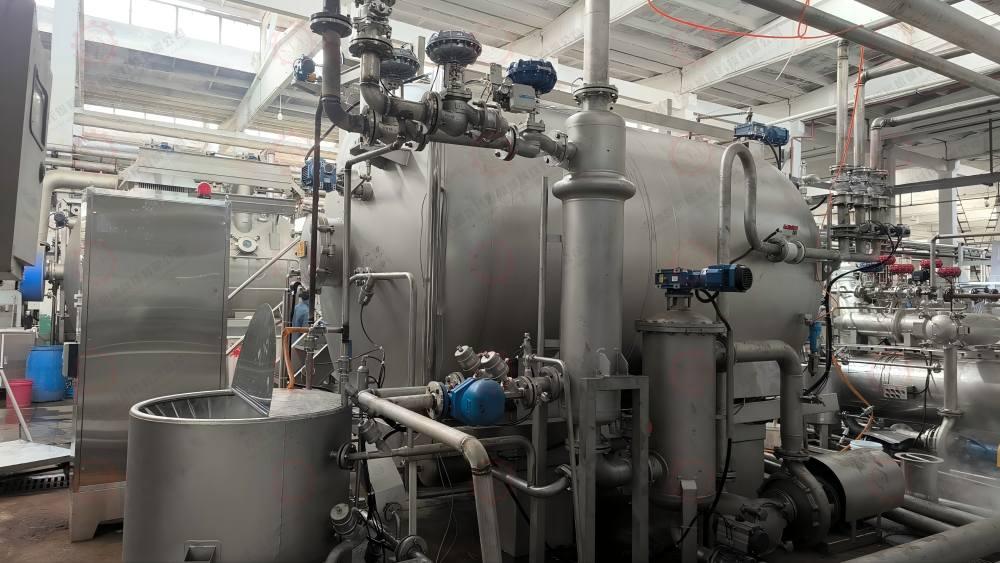

Internal Lifting Wheel Fabric Dyeing Machine

Internal Lifting Wheel Fabric Dyeing Machine is a core model in our knitted fabric dyeing machine series. It is specifically engineered to minimize fabric tension and maximize dyeing uniformity for knitted fabric.

Key Technical Advantages

Hidden internal lifting wheel design: with fabric lifting height controlled within 80 cm, effectively reducing fabric tension during operation

Blind-spot-free circulation system: ensuring uniform dye liquor flow and preventing tube-to-tube color differences

Adjustable high-flow nozzle system: with up to 1.8 kg pressure, increasing dye liquor circulation frequency

Automatic lint removal system: to prevent circulation blockage and reduce maintenance downtime

Steam ratio control system: with adjustable heating and cooling rates for precise process control

Low liquor ratio of 1:4.5: reducing water and energy consumption

Performance Specifications

• Applicable fabric GSM range: 50–350 GSM
• Maximum running speed: up to 450 m/min
• Maximum loading capacity per tube: 350 kg
• Machine operating noise level: ≤ 70 dB

Typical Applications

• Knitted fabric dyeing
• Elastic and lightweight fabrics
• Medium-weight knitted textiles requiring high color consistency

Why Choose Wuxi Shin Tong Yunn

With over 25 years of experience in dyeing machine manufacturing filed, Wuxi Shin Tong Yunn focuses on developing reliable and application-oriented solutions for textile dyeing plants worldwide.

Our knitted fabric dyeing machines are designed with:

• Proven mechanical stability
• Easy maintenance and long service life
• Practical process adaptability for different fabric types
• Strong suitability for continuous industrial production

Summary

Wuxi Shin Tong Yunn knitted fabric dyeing machine provide balanced solution combining low tension fabric handling, efficient dye liquor circulation and precise process control. The Internal Lifting Wheel Fabric Dyeing Machine, in particular, offers effective and stable dyeing solution for knitted fabric where fabric quality and color uniformity are critical.

For dyeing houses seeking reliable knitted fabric dyeing equipment, Wuxi Shin Tong Yunn delivers practical engineering solutions designed for long-term production performance.
