How to Prepare Yarn Dyeing Machines for Export Before Shipment

Apr 17, 2026

Exporting yarn dyeing machines is not only about loading the machine and arranging shipment. Proper pre-shipment work helps reduce installation errors, shorten commissioning time and improve production readiness after arrival.

For overseas projects, the work completed before shipment directly affects installation speed, commissioning efficiency and the risk of delays at the customer's factory. A well-prepared export project should make the machine easier to unload, identify, install, connect and commission.

This is especially important for buyers who are planning a hank dyeing machine project, considering a high temperature hank dyeing machine or evaluating a cone / package yarn dyeing machine solution.

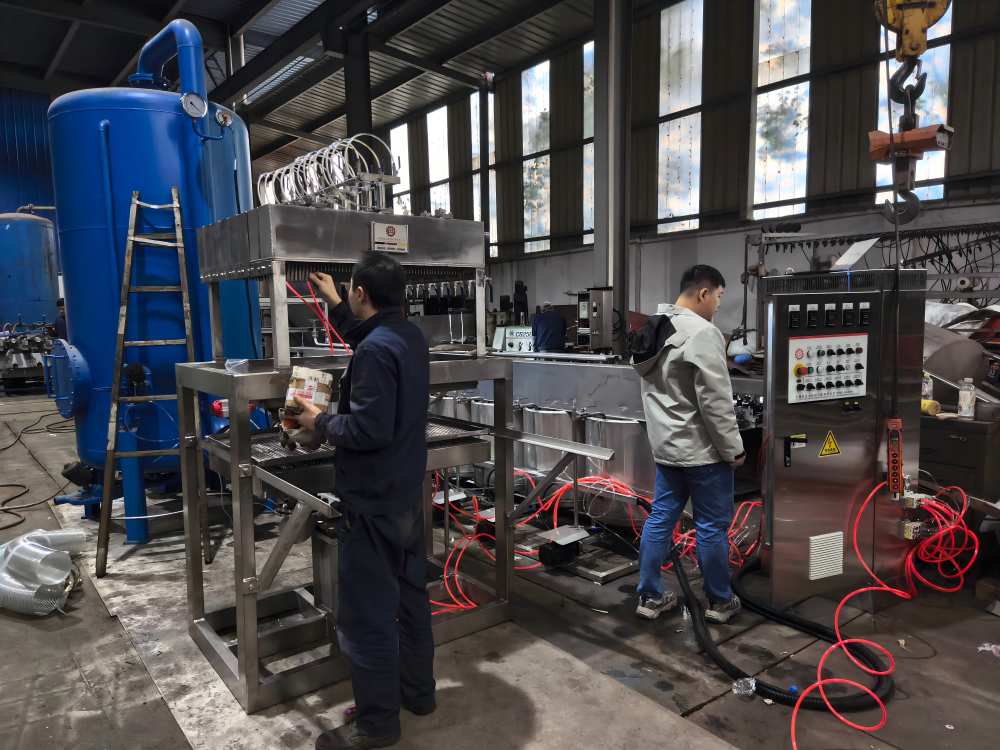

Factory-side functional testing before shipment
Figure 1. Factory-side functional testing before shipment

Quick Checklist

  • Complete machine testing before shipment
  • Confirm key process and operating parameters
  • Label pipes, cables and removed parts clearly
  • Verify accessories, manuals and packing scope
  • Prepare shipment information for unloading and installation

Why pre-shipment preparation matters

Many installation problems do not begin at the customer's factory. They often start earlier, when testing is incomplete, parameters are not confirmed, accessories are not counted clearly, or pipes and cables are not marked properly before packing.

If these details are ignored before shipment, the result may include:

  • Longer installation time
  • Repeated pipe or cable checking
  • Incorrect reassembly of removed parts
  • Missing accessories or documents
  • Extra technician time during commissioning
  • Delayed production start after arrival

1) Machine testing before shipment

The first priority is to confirm that the yarn dyeing machine has completed a proper factory-side functional check before export. This testing should go beyond a simple power-on inspection.

Main points to review

  • Mechanical running condition
  • Pump circulation performance
  • Heating response and temperature stability
  • Cooling response if applicable
  • Valve action and sequence logic
  • Control system response
  • Basic alarm and safety function check
  • Leak inspection at key sealing points

The purpose of this stage is to identify possible problems inside the factory instead of leaving them to the customer site. Small issues such as unstable valve action, sensor deviation, seal leakage or control response abnormalities are easier to check and correct before shipment than after overseas delivery.

2) Process and parameter confirmation before export

Besides mechanical testing, key operating parameters should also be checked before export. This is particularly important when the machine is built according to a customer's yarn type, process requirement or control preference.

Typical items to confirm

  • Working temperature range
  • Pressure setting, if applicable
  • Liquor ratio target
  • Program sequence logic
  • Valve timing
  • Pump running condition
  • Basic control interface setup
  • Utility connection requirements

Even if final on-site adjustment is still needed, confirming the main settings before export can reduce trial-and-error work after arrival.

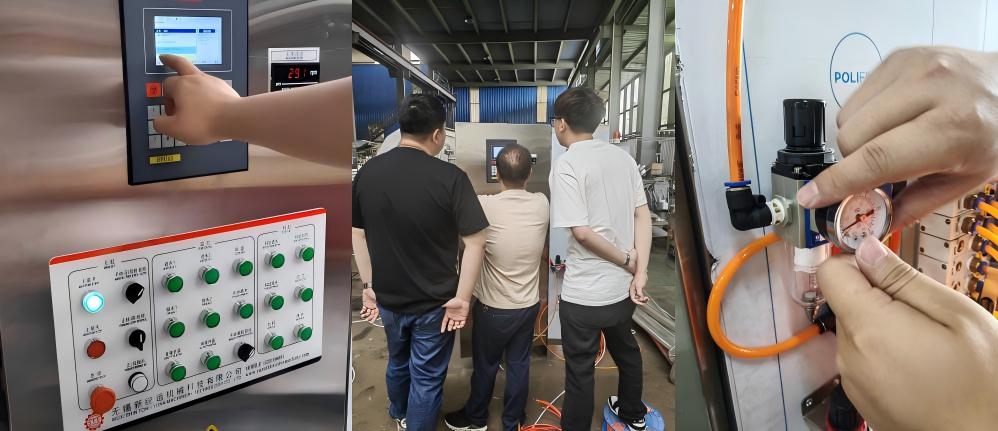

Control program and parameter confirmation before exporting yarn dyeing machine
Figure 2. Control program and parameter confirmation before export

3) Labeling of pipes, cables and removed parts

Clear labeling is one of the most practical parts of pre-shipment preparation, especially for export projects where some parts may need to be disconnected, packed separately or reassembled at site.

What should be labeled clearly?

  • Pipes: water, steam, air, drain and circulation-related lines where needed
  • Cables: power and control cables with matching identifiers
  • Removed parts: flanges, covers, supports and separated accessories with matching marks

Good labeling does not only make the shipment look organized. More importantly, it improves installation clarity, shortens reassembly time and lowers the chance of wrong connections.

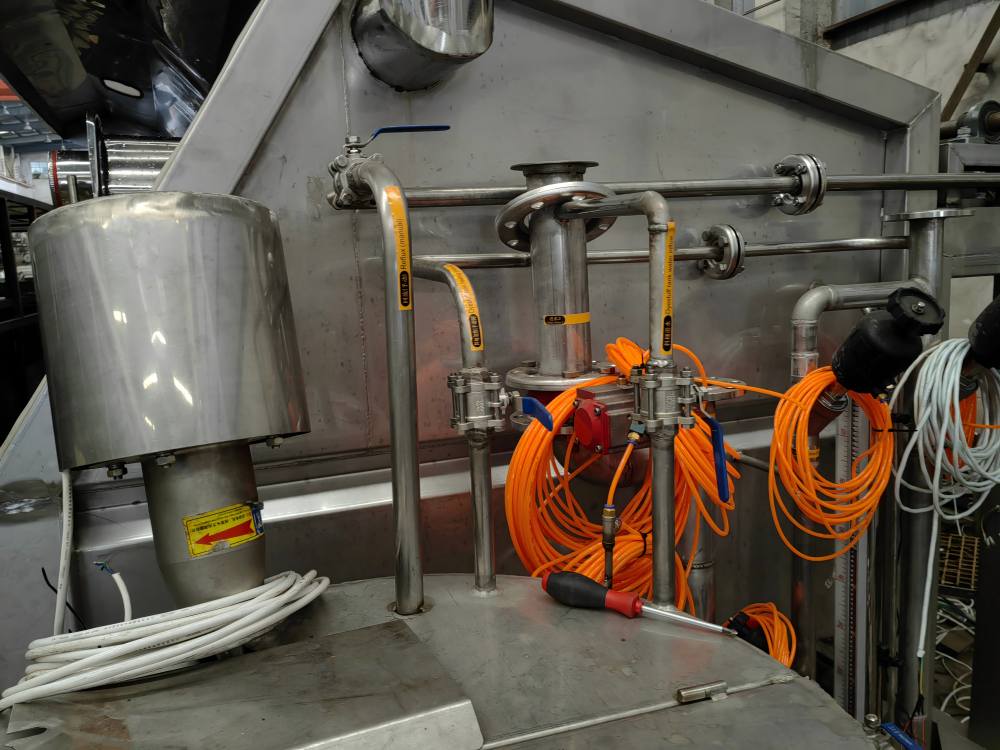

Pipe and cable labeling for yarn dyeing machine export installation
Figure 3. Clear labeling of pipes and connection points for overseas installation

4) Packing list and accessory verification

Before the machine is shipped, the packing scope should be checked carefully. In export projects, missing small parts often create larger delays than expected, especially when installation teams are already on site.

A practical packing review should include

  • Main machine body
  • Separated accessories and external assemblies
  • Fasteners and matching installation parts
  • Spare parts included in the order
  • Manuals and basic technical documents
  • Electrical or connection-related reference documents if applicable

Each package should also be checked for consistency with the packing list. In addition to counting, it is useful to verify whether the package content is complete and logically arranged for unloading and installation.

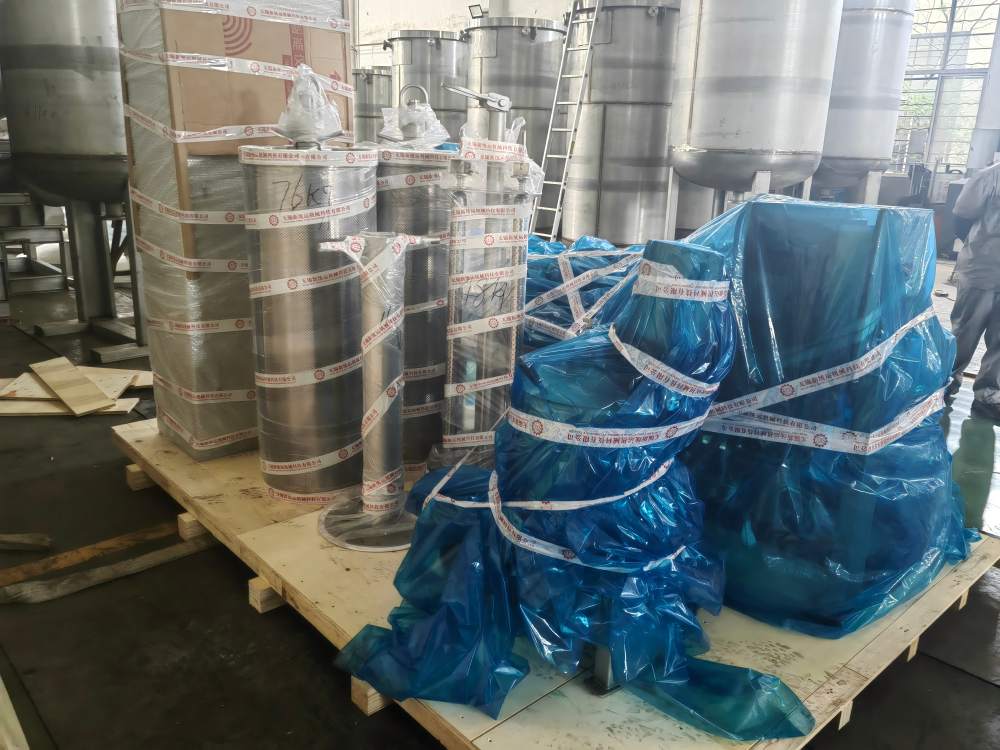

Accessory and separated-part verification before packing dyeing machine
Figure 4. Accessory and separated-part verification before packing

5) Package dimensions, weight and shipment information

Export preparation should also include a basic review of package logistics information. This is not only for shipping companies. It is also helpful for the customer's unloading plan, warehouse arrangement and lifting preparation after arrival.

  • Package quantity
  • External dimensions of each package
  • Net weight and gross weight
  • Packing mark consistency
  • Machine identity and related shipment information

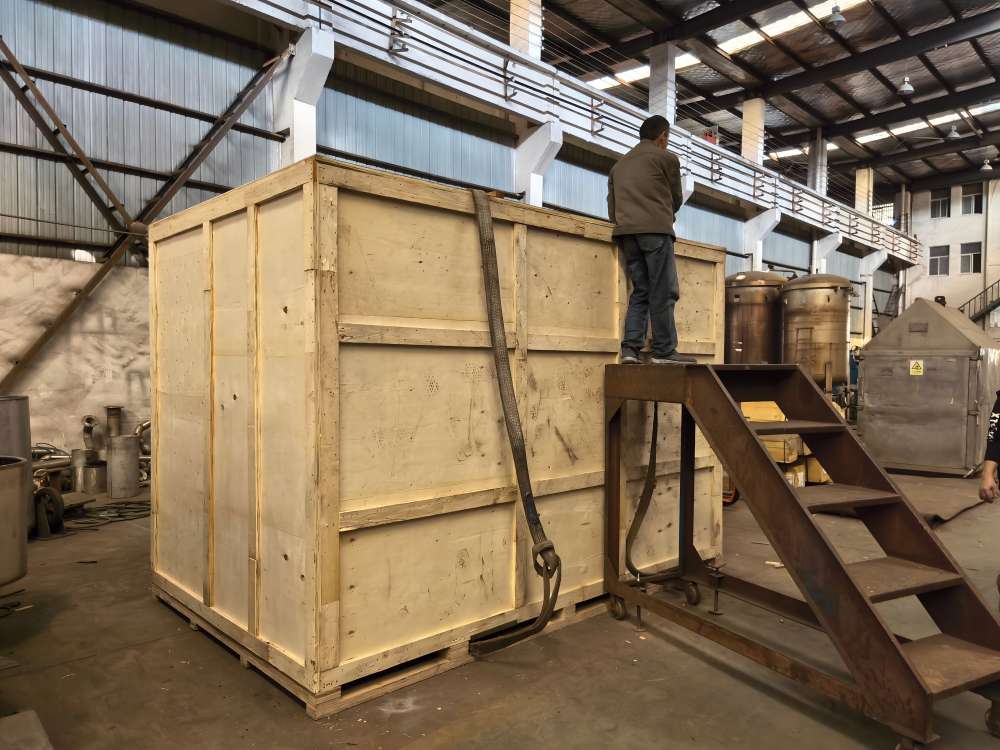

Wooden case packing for overseas shipment of yarn dyeing machine
Figure 5. Wooden case packing for overseas shipment

6) Documents that should be checked before shipment

A yarn dyeing machine export project should not rely only on the physical machine. Basic shipment and installation documents should also be reviewed before dispatch.

  • Packing list
  • Machine manual
  • Basic layout or installation reference information
  • Utility requirement notes
  • Electrical reference documents where applicable
  • Accessory list or spare parts list

7) Installation readiness after arrival

A strong pre-shipment process should support easier installation after the machine reaches the customer's factory. This means export preparation should be connected to the next step, not treated as a separate task.

  • Required utility connections
  • Basic space and handling conditions
  • Positioning of main machine and accessories
  • Need for lifting or unloading equipment
  • Availability of technicians for reassembly and connection

Common mistakes to avoid

  • Shipping the machine without a full functional check
  • Leaving important pipes or cables without clear labels
  • Packing removed parts without matching identification
  • Failing to verify accessories and spare parts one by one
  • Sending incomplete manuals or reference documents
  • Assuming all installation issues can be solved later on site

Conclusion

Preparing a yarn dyeing machine for export before shipment is not only a logistics task. It is an important part of delivery quality control. Proper testing, parameter confirmation, labeling, packing verification and document checking can reduce installation risk and improve commissioning efficiency after arrival.

For overseas buyers, this preparation helps shorten the path from delivery to production. For manufacturers and project teams, it improves execution quality and supports more reliable project results.

Need help selecting a suitable yarn dyeing machine?

You may also review our normal temperature hank dyeing machine, high temperature hank dyeing machine and cone / package yarn dyeing machine solutions.

You may also contact us with your yarn type, batch capacity, heating method and control requirement. Our team can recommend a suitable machine model and explain the related pre-shipment preparation scope for your project.

Related Reading

Hank Dyeing Machine

Explore machine options for hank yarn dyeing projects and compare solution directions before export planning.

Cone / Package Yarn Dyeing Machine

See package yarn dyeing solutions if your export project is based on cone or package processing.

Client raise for fast installation: Wuxi Shin Tong Yunn wins trust by commissioning dyeing machines in 48 hours

A practical case showing how installation efficiency affects project delivery after machine arrival.

Brazil Hank Yarn Dyeing Project | 4 SH-20-150 Machines and 1 DC-6 Dryer

See a shipment case where connection markings and pre-shipment verification supported faster overseas installation.

FAQ

Should a yarn dyeing machine be tested before shipment?

Yes. A pre-shipment test helps confirm the machine's running condition and reduces the chance of avoidable problems after overseas delivery.

Why are pipe and cable labels important?

Clear labels make reassembly and site connection easier, reduce installation mistakes and save technician time during commissioning.

What should be checked in the packing list before export?

The main machine, accessories, removed parts, spare parts, manuals and related documents should all be checked carefully against the packing scope before shipment.
