woven fabric dyeing machine

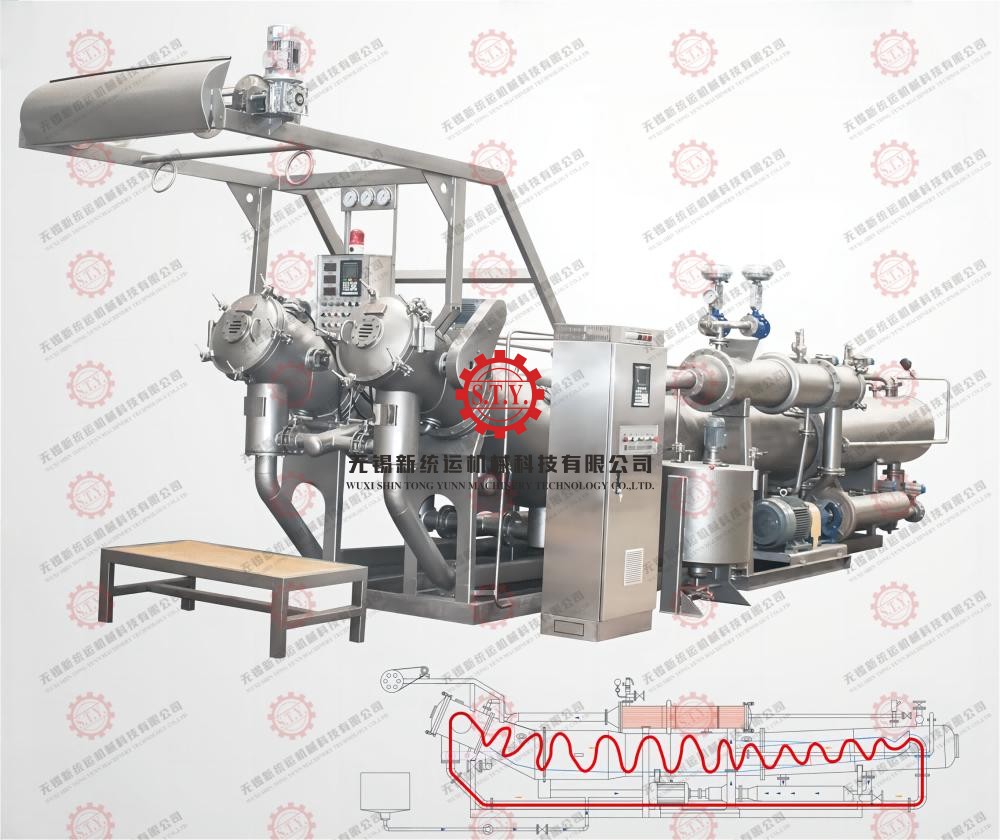

Overflow long tube jet high temperature woven fabric dyeing machine

TY-JL631 high temperature woven fabric dyeing machine is suitable for processing and dyeing: 50-800g/m of ployester, nylon, ployester cotton, u;fra-fine fiber conposite, elastic, new synthetic, and all sorts of long and short fiber union fabric.

  • Model :

    TY-JL631

  • Payment :

    T/T;LC

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China

  • HS Code :

    8451400000
Inquiry now

woven fabric dyeing machine

  • high pressure fabric dyeing machine
    Dyeing

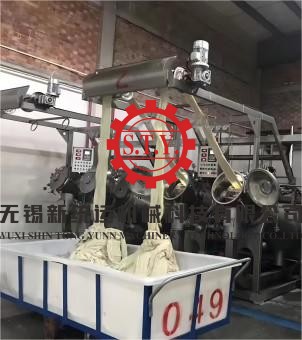

    Fabric dyeing machine is working in cilent's factory in good condition.
  • #

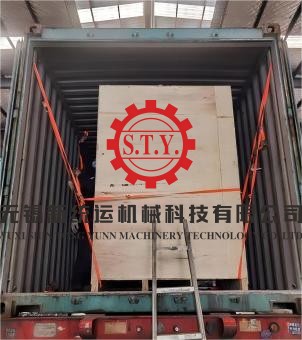

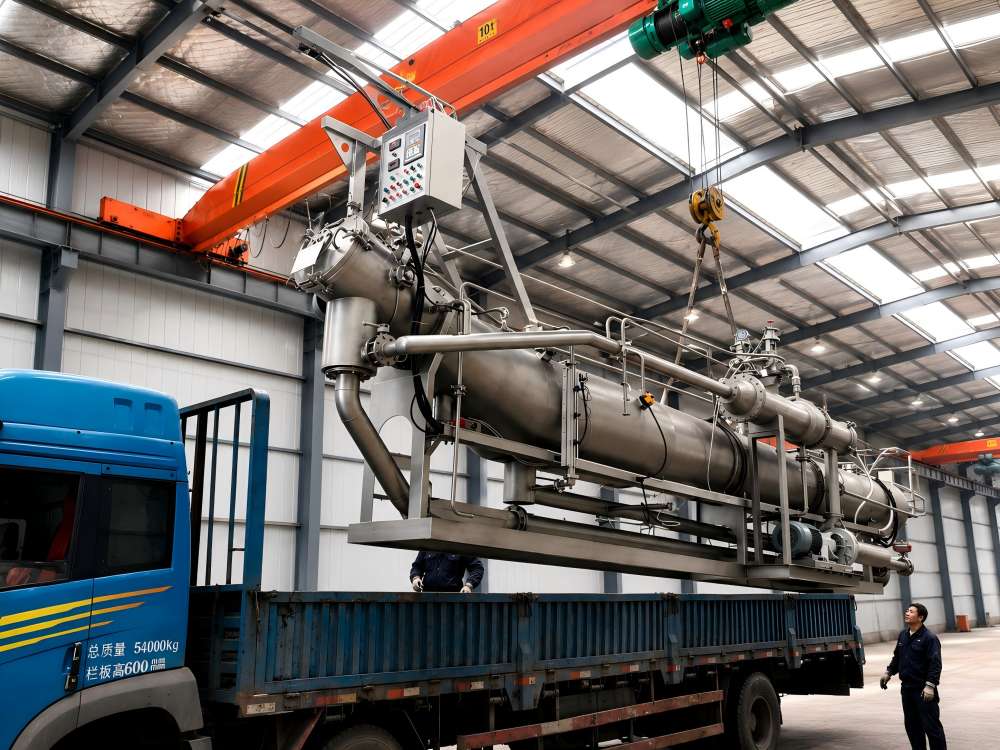

    Export & Loading Container
    Professional team loading container, in case getting damage during transportation processing.
  • #
    Packing
    Sea freight standard package, plywood box, packing electrical cabinet, spare parts and so on.

PRODUCT FEATURE

  • TY-JL631 high temperature fabric dyeing machine is equipped with lifting fabric motor(fequency inverter control), the speed of lifting can be adjusted, max. speed is 600m/min.
  • Update machine structure, making the fabric running inside as lower tension. This model high pressure fabric dyeing machine has knock-point, ensure cloth can stock in order manner, avoid dyeing wrinkle and crease, impove hand feeling and bulking intensity.
  • Special design the anti-swirl baffle, during dyeing processing there's no cloth spin, ensuring get more uniform dyeing.
  • Use adjustable nozzle: the space of jet nozzle can be adjusted freely in order to reach half-jet dyeing or full-jet dyeing.
  • Newest design inner mesh, when dyeing high density fabric, it will be running more smoothly.
  • Optional configuration: auto dyestuff tank, dosing system, auto temperature control system.



BASIC DATA

  • Max. working pressure: 0.4 Mpa
  • Max. working temperature: 140℃
  • Rate of temperature rising: 20-130℃, at the steam pressure above 8.0KG/cm2, around 25 mins
  • Rate of cooling: 130-80℃ need around 15mins, at cool water temperature is around 20℃, above P=1.2KG/cm2



CONFIGURATION

TY-JL631 HIGH TEMPERATURE HIGH PRESSURE OVERFLOW JET FABRIC DYEING MACHINE
MODEL TY-JL631-250 TY-JL631-500 TY-JL631-1000

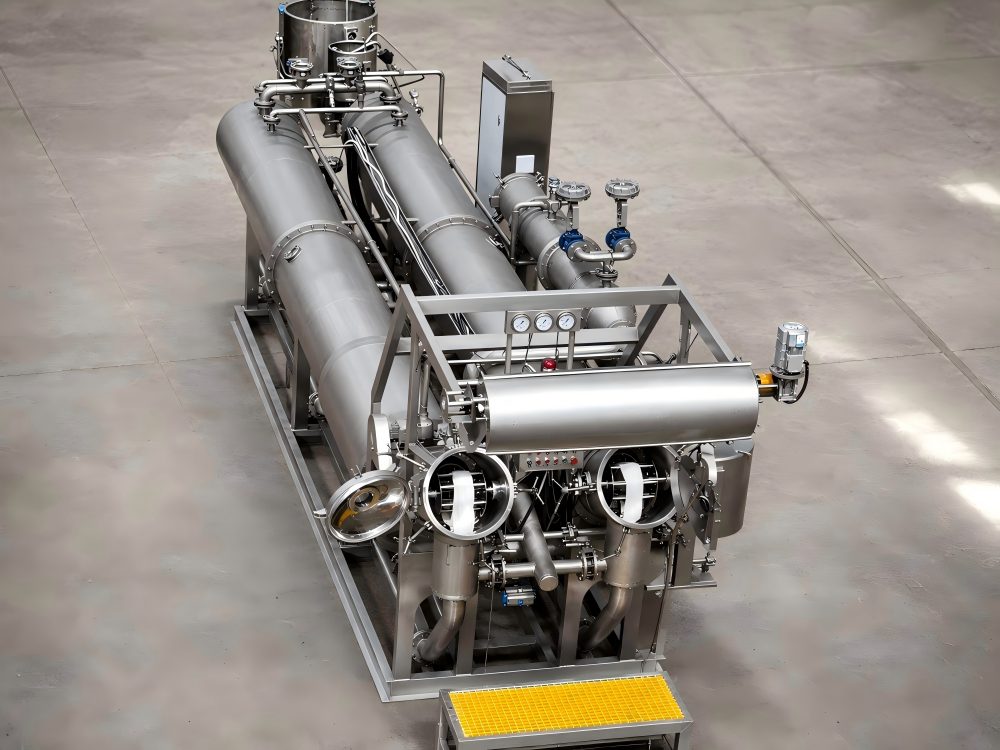

NO. OF TUBES 1 2 4
POWER 23.5KW 35KW 53.7KW
DIMENSION(LXWXHmm) 12000X1900X2650 12000X2600X2650 12000X4890X2650
