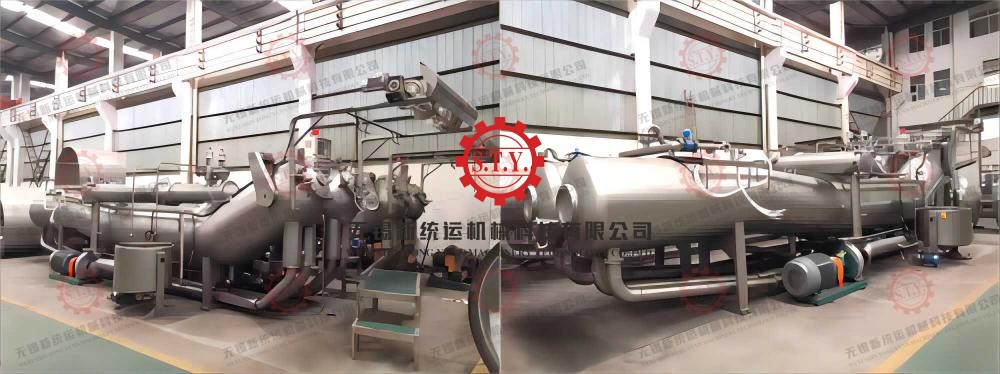

Overflow extra large capacity low tension high pressure fabric dyeing machine

TY-JL656B series extra large capacity high pressure fabric dyeing machine is suitable for dyeing 100% polyester, 100% nylon, T/C, CVC(chief value of cotton), T/R, N/C, N/T, N/R, R/T, CD（cationic polyester yarn）/T/R and N/TR high count fabric, new synthetic fibre fabric: SATIN, TRICOT, suede fabric, TASLON, TACTEL, jacquard fabric, BENGALINE, rib fabric, poplin, creppella, eyelet fabric, TAFFETA, drill weave, as well as union fabric interwoven and belended with various chemical fiber and long staple, cut fibe fabric.

  • Model :

    TY-JL656B

  • Payment :

    T/T;LC

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now

large capacity fabric dyeing machine

  • high pressure fabric dyeing machine

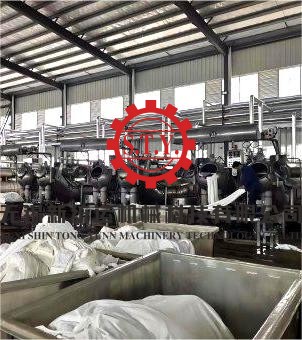

    Dyeing
    Fabric dyeing machines are running in good condition.
  • #

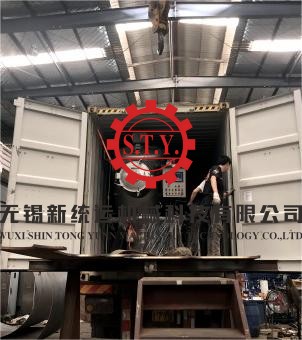

    Export & Loading Container
    Professional team loading container, in case damaging.
  • #

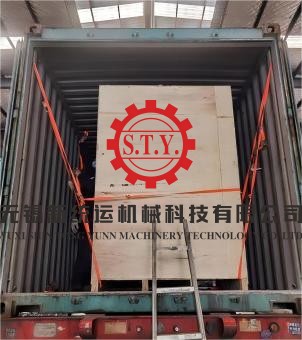

    Packing
    Sea freight standard package, plywood box.

PRODUCT FEATURE

  • TY-JL656B high temperature fabric dyeing machine is perfect for dyeing elastic fabric and low tension fabric. Overflow can be running normally at pressure 0.5-1KG/cm2 .
  • Extra capacity of this type fabric dyeing machine: quick return on investment, reduce the cylinder difference of batch dyeing, each big pipe is seperated into two channel(one pipe can running two pieces fabric at one time).
  • Soft flow water minimizes the impact on the surface of the superior fabric to ensure that it does not raise wool and that the yarn is not twisted.
  • Unique elbow design, can achieve no dead angle, minimum tension, min. liquor ratio.



BASIC DATA

  • Fabric running speed: 600m/min
  • Max. working pressure: 0.4 Mpa
  • Max. working temperature: 140℃
  • Rate of temperature rising: 20-130℃, at the steam pressure above 8.0KG/cm2, around 25 mins
  • Rate of cooling: 130-80℃ need around 15mins, at cool water temperature is around 20℃, above P=1.2KG/cm2



OPTIONAL CONFIGURATION

  • Dosing system.
  • High speed draining.
  • Water in flow meter.
  • Hot water tank.
  • Second chemical tank.
  • Dual water in & out.
  • Swinging device for outer reel.
  • Proportional valve for heating & cooling.



SPECIFICATION

TY-JL656B EXTRA LARGE CAPACITY HIGH PRESSURE FABRIC DYEING MACHINE
MODEL TY-JL656B-50 TY-JL656B-100 TY-JL656B-250 TY-JL656B-500 TY-JL656B-1000
NO. OF TUBES/CHAMBERS 1/1 1/1 1/2 2/4 4/8
CAPACITY(kg) 35-50 70-100 175-250 350-500 700-1000
POWER 11.6KW 15.1 23.7 52.4 88.3KW

DIMENSION

(LXWXHmm)

4850x1350

x2350

6200x1350

x2350

9050x1850

x2450

 9050x3100x2450 9050x6000x2450
