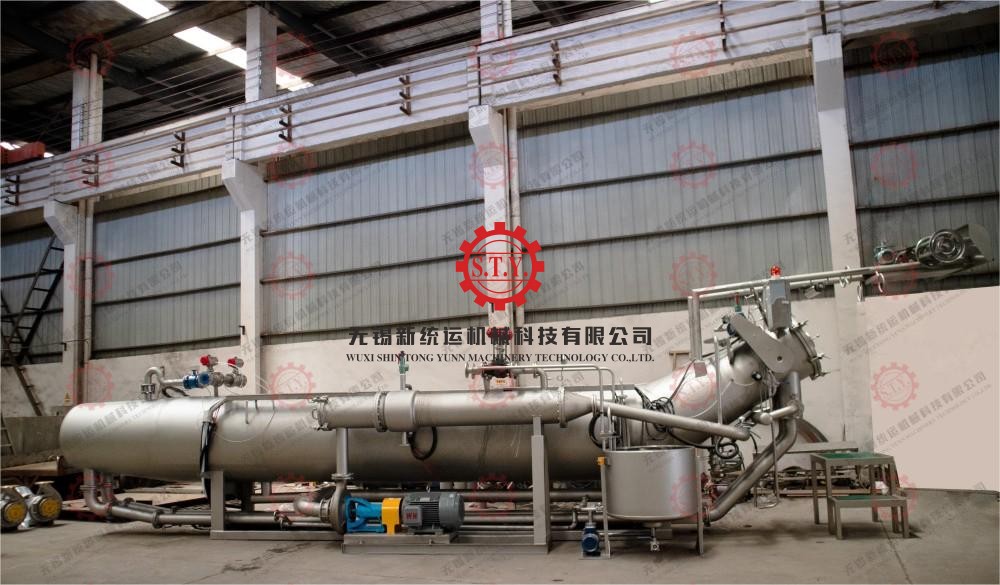

Steam heating long tube overflow high pressure woven fabric dyeing machine

TY-JL656C series high pressure woven fabric dyeing machine is developed the capacity which is compared with TY-JL656B fabric dyeing machine. It is also suitable for dyeing N100%, T100%, N+OP, T+OP, T/C, CVC, T/R, N/C, and N/T.

  • Model :

    TY-JL656C

  • Payment :

    LC; T/T

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now

woven fabric dyeing machine

PRODUCT FEATURE

  • Overflow jet fabric dyeing machine is adapted adjustable nozzle and the guide pipe is shorter than traditional type, nozzle carry more lower pressure to fabric, after dyeing, the fabric is more soft and relax, improve the dyeing quality.
  • Increase the capacity of this model fabric dyeing machine, decrease the liquor ratio, save dyeing cost and space.
  • The inner lifting fabric wheel is equipped with frequency inverter, the speed can be adjustable according the fabric running speed. It is effectively help fabric running inside more smoothly.
  • High efficient heating exchanger, ensure the dyeing quality and reduce the energy consumption.
  • Wide inlet desigh of woven fabric dyeing machine, more humane, convinient workers operate.



BASIC DATA

  • Max. working pressure: 0.4Mpa
  • Max. working temperature: 140℃
  • Fabric running speed: Max. 600m/min
  • Temperature increasing speed: 20-130℃, at the steam pressure above 8.0KG/cm2, around 25 mins
  • Temperature cooling speed: 130-80℃ need around 15mins, at cool water temperature is around 20℃, above P=1.2KG/cm2



OPTIONAL CONFIGURATION

  • High speed draining
  • Water in flow meter
  • Hot water tank
  • Second chemical tank
  • Dual water in & out
  • Dosing system for dyestuff tank
  • Chemical tank mixing device
  • Swinging device for outer reel
  • Intelligent rinsing system
  • Proportional valve for heating & cooling
  • Self cleaning filter



SPECIFICATION

TY-JL656C HIGH TEMPERATURE OVERFLOW FABRIC DYEING MACHINE
MODEL TY-JL656C-1T TY-JL656C-2T
NO. OF TUBES/CHAMBERS 1/2 2/4
CAPACITY(kg) 650-800 1300-1600
POWER 42KW 65KW

DIMENSION(LXWXHmm)

 9050X2200X3000 9050x3100x3000
