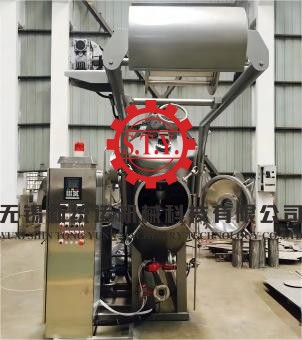

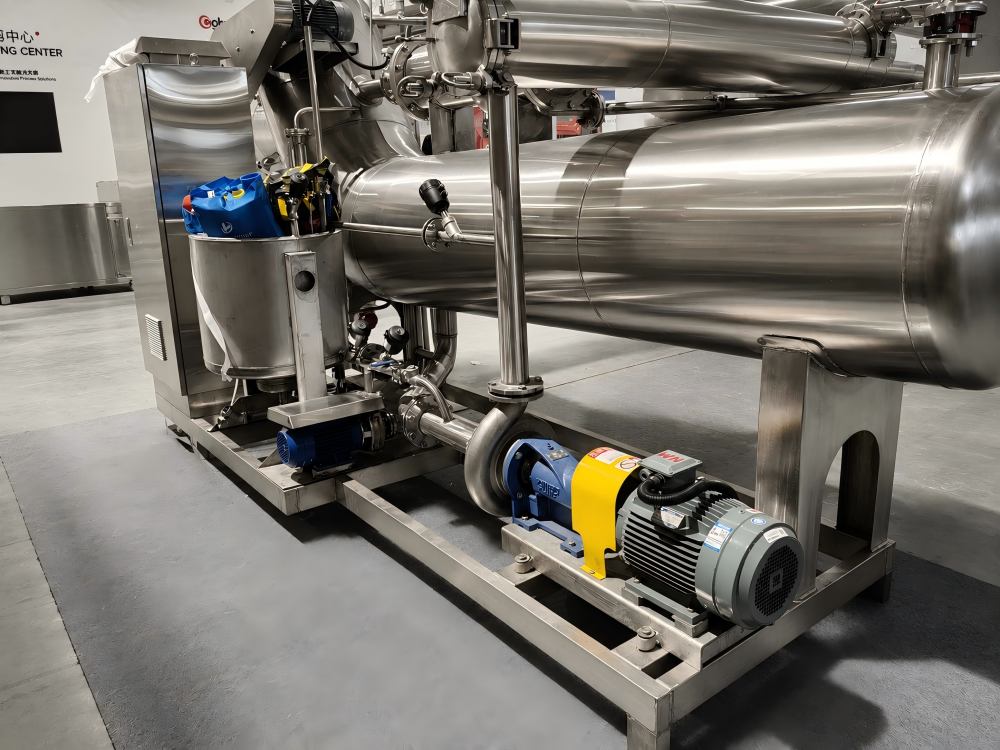

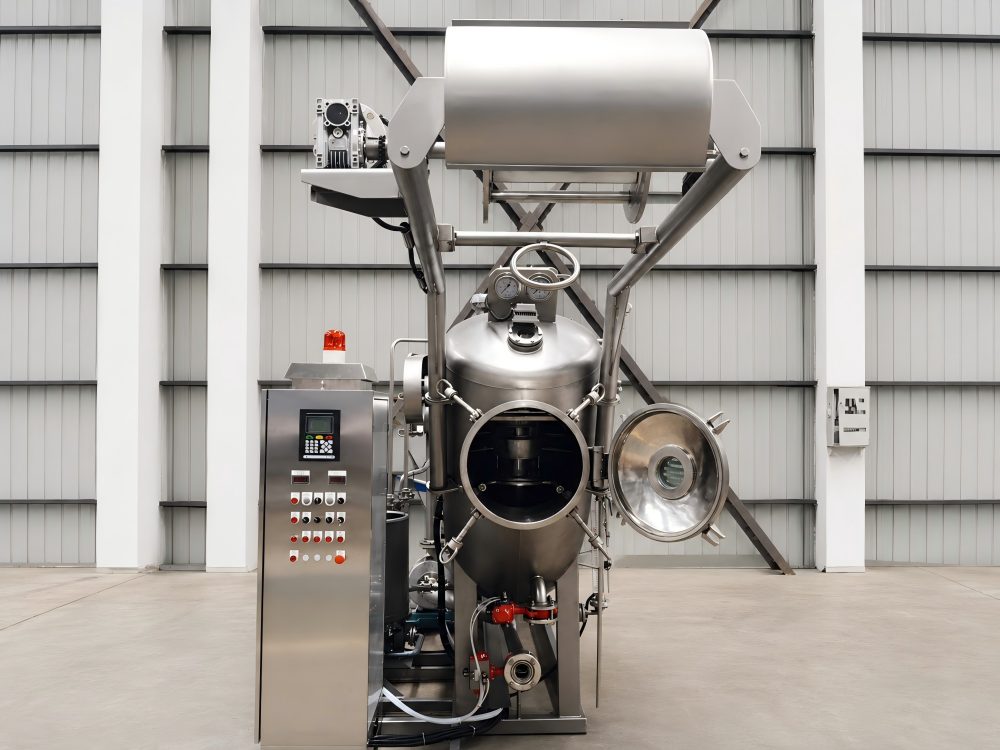

Middle sample high pressure high temperature rapid fabric dyeing machine

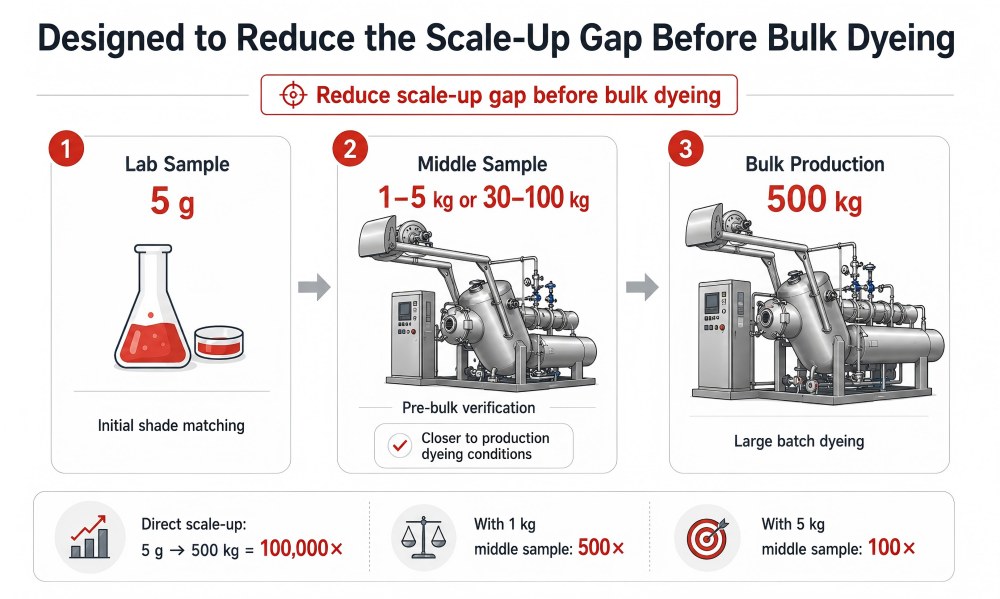

TY-JL636S series high pressure fabric sample dyeing machine is suitable for dyeing middle sample fabric before large batch fabric dyeing, ensure the dyeing quality and reduce the production cost.

  • Model :

    TY-JL636S

  • Payment :

    T/T;LC

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now

middle sample fabric dyeing machine



PRODUCT FEATURE

  • TY-JL636S high temperature sample fabric dyeing machine is suitable for knitted fabric from common knit fabric to newly developed elastic fabric. such as fabric of elastic cotton, rib elastic viscose, elastic polyester, elastic nylon, carpet fabric, towel fabric and so on.
  • High pressure overflow fabric dyeing machine is combined reducing cloth guide tube: to minimize tension and provide function of efficient elimination of running marks.
  • Overflow fabric dyeing machine with the features of short cloth run, moderate cloth length, lower liquor ratio, simple operation and easy maintenance.
  • Providing low operating height, less cloth tension, small shrinkage after dyeing and finished weight per yard.
  • L-type fabric dyeing machine with wide range application, can dye light to heavy fabric(50-600g/m2), large capacity, running smoothly and steadily, improve evenness, less creasing marks, elimate wrinkle.



BASIC DATA

  • Working pressure: 0.4 Mpa
  • Max. design temperature : 152℃
  • Rate of temperature rise: 20-140 ℃, 35min
  • Rate of temperature drop: 140-70℃, 30min
  • Cloth running speed: 0-450m/min



OPTIONAL CONFIGURATION

  • Dosing system.
  • High speed draining.
  • Water in flow meter.
  • Hot water tank.
  • Second chemical tank.
  • Dual water in & out.
  • Swinging device for outer reel.
  • Proportional valve for heating & cooling.



SPECIFICATION

TY-JL636S DUAL FLOW HIGH TEMPERATURE FABRIC DYEING MACHINE
MODEL TY-JL636S-100 TY-JL636S-50 TY-JL636S-30
CAPACITY(kg) 100 50 30
NO. OF TUBES 1 1 1
POWER 7.5KW 11.25KW 11.25KW
DIMENSION(LXWXHmm) 6590x1700x3080 6200x1700x3080 5800x1700x3080
