Y10 is a 4.5kg small-capacity cabinet hank yarn dyeing machine for sampling and small-batch production. It features overflow circulation, steam heating, adjustable stainless steel hank yarn bars and automatic forward/reverse circulation, making it suitable for selected cotton, wool, acrylic and blended hank yarn.
Model :
Y10Payment :
T/T; LCProduct Origin :
ChinaShipping Port :
Shanghai Port, ChinaY10 small-capacity cabinet hank yarn dyeing machine is designed for sampling, process development and limited-quantity production under normal-temperature and normal-pressure conditions. With an approximate loading capacity of 4.5 kg per batch, it is a compact model in our Y Series full-fill overflow hank yarn dyeing machine range.
| Model | Y10 |
| Machine Type | Cabinet type full-fill overflow |
| Reference Capacity | Approx. 4.5 kg / batch |
| Main Power | 1.1 kW |
| Max. Working Temperature | 98°C |
| Heating Method | Steam heating |
| Yarn Carrier | 2 sets stainless steel hank yarn bars |
| Circulation Control | Automatic forward and reverse circulation |
Actual loading capacity may vary according to yarn material, yarn count, hank dimensions and processing requirements.

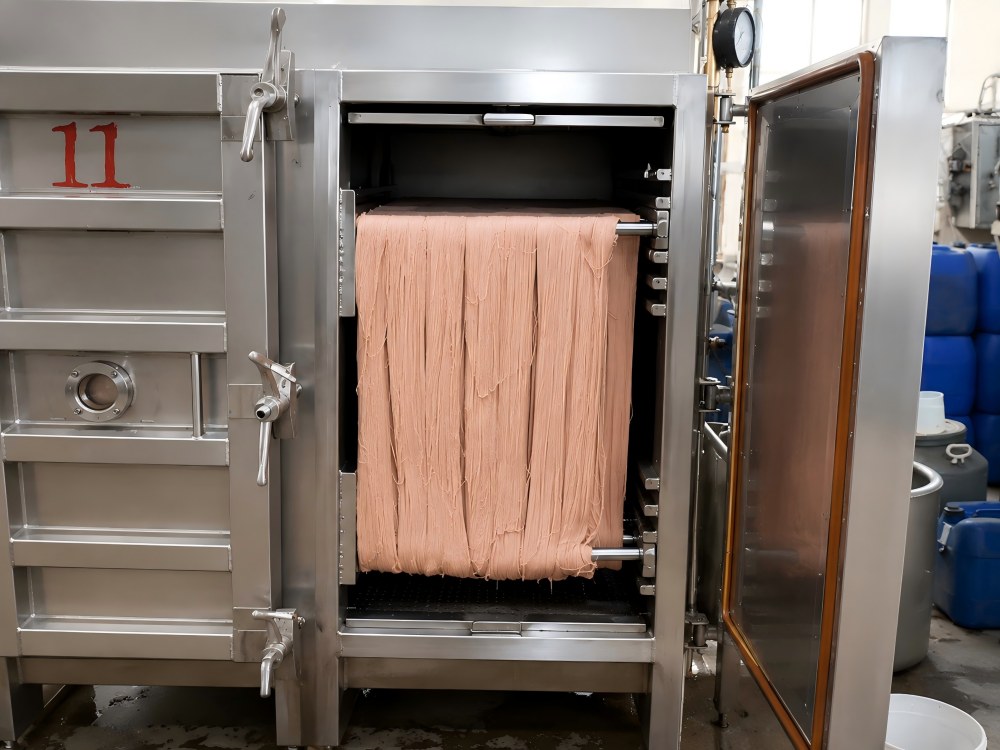

The Y10 uses cabinet structure with overflow circulation. During processing, dye liquor circulates continuously through the yarn area, while the flow direction can be switched automatically between forward and reverse circulation.

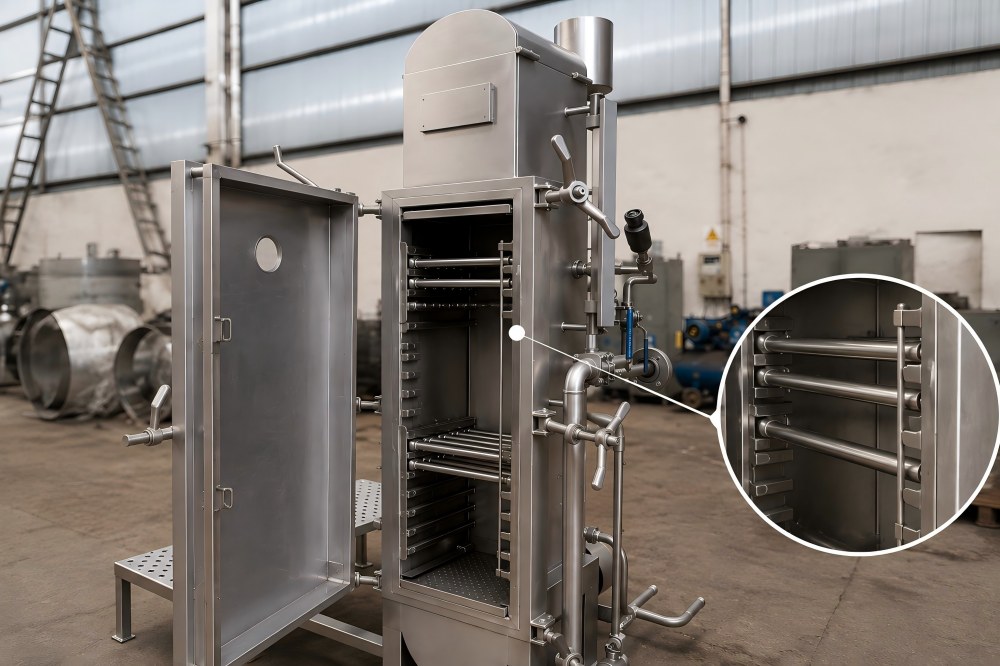

The circulation condition can be adjusted according to yarn characteristics and process requirements. The hank yarn bar position can also be adjusted to accommodate different hank lengths.
This cabinet configuration is especially suitable for applications where maintaining hank form, yarn roundness and finished yarn appearance is an important part of the dyeing result.

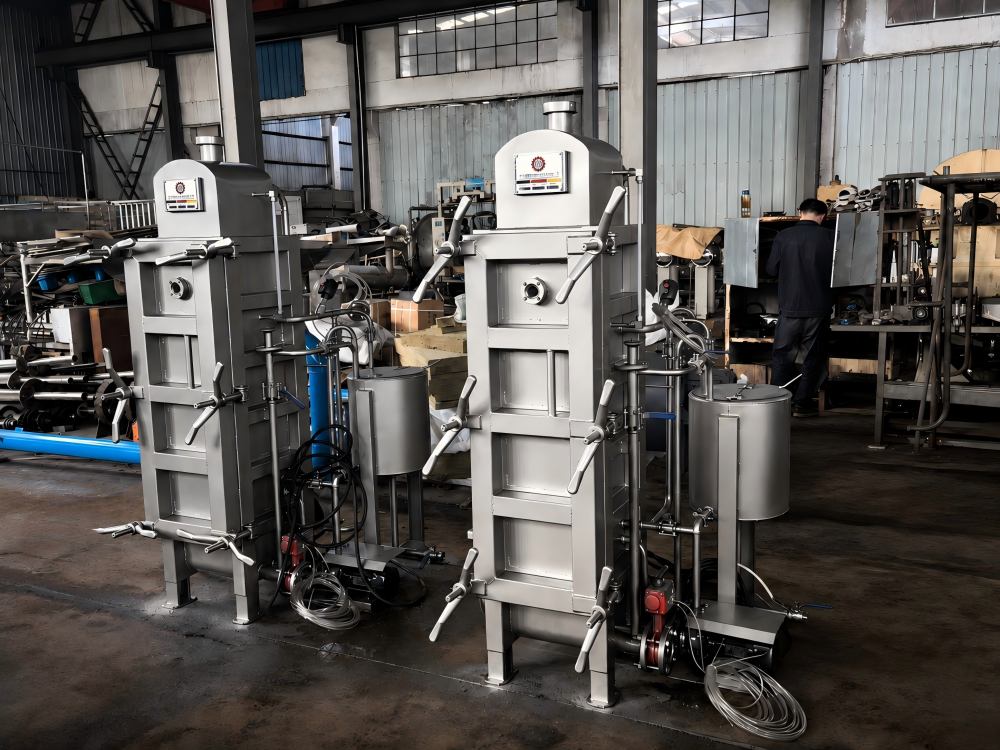

The Y10 can also be configured with a floor-standing dystuff tank for customers who require a separate system for dye and chemical preparation.
This configuration is equipped with with back-flush dyestuff preparation system and charging pump. The back-flush system mixes dyestuff or chemicals inside the tank, while the charging pump transfers the prepared solution into the dyeing machine.
| Chemical Tank | Floor-standing type |
| Mixing System | Back-flush |
| Feeding System | Charging pump and motor |
| Function | Dye and chemical preparation, mixing and feeding |
This is an optional configuration. Final setup can be selected according to the customer's dyeing process and operating requirements.
Typical applications include selected mercerized cotton, wool, high-bulky acrylic and blended hank yarns. Final machine selection should be confirmed according to yarn material, yarn count, hank size and required finishing effect.
Depending on the yarn and recipe, the Y10 can be used for normal-temperature wet-processing steps such as:
| Item | Reference |
|---|---|
| Maximum Working Temperature | 98°C |
| Heating from 20°C to 98°C | Approx. 30 minutes* |
| Cooling from 98°C to 80°C | Approx. 15 minutes* |
*Reference conditions: dry saturated steam pressure approximately 6 kg/cm² for heating and cooling water pressure approximately 3 kg/cm². Actual performance depends on utility conditions, loading and process settings.
Y10 and SH-1 are both small-capacity hank yarn dyeing machines, but they use different circulation structures and are intended for different process priorities.
| Comparison | Y10 | SH-1 |
|---|---|---|
| Structure | Cabinet overflow type | Spray type |
| Main Priority | Hank form and finished yarn appearance | Flexible sampling and shade verification |
| Typical Use | Small-batch cabinet overflow dyeing | Spray-type sample dyeing |
View the SH-1 small capacity spray hank yarn dyeing machine if spray circulation is more suitable for your sampling process.

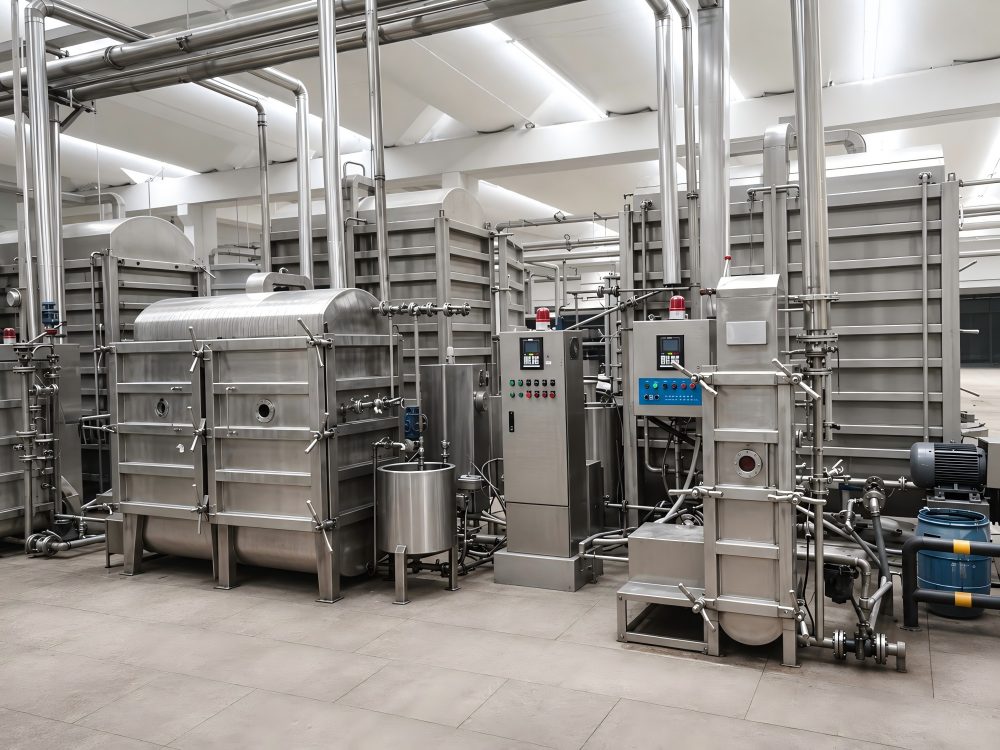

For different batch requirements, other small-capacity models are available within the same cabinet overflow series.
| Model | Main Power | Reference Capacity |
|---|---|---|
| Y5 | 1.1 kW | 2.2 kg |
| Y10 | 1.1 kW | 4.5 kg |
| Y20 | 1.1 kW | 9 kg |
| Y30 | 2.25 kW | 14 kg |
| Y50 | 2.25 kW | 23 kg |
For larger capacities and the complete Y Series range, visit our cabinet type full-fill overflow hank yarn dyeing machine page.
The reference loading capacity is approximately 4.5 kg per batch. Actual loading depends on yarn material, count and hank dimensions.
Y10 is better classified as a small-capacity production sample machine. It is suitable for trial dyeing, process development and small-quantity production using a cabinet overflow structure.
Typical applications include selected mercerized cotton, wool, high-bulky acrylic and blended hank yarns. Machine selection should be confirmed according to the actual yarn specification.
Choose according to the required circulation structure and yarn effect. Y10 uses cabinet overflow circulation, while SH-1 uses spray circulation. Yarn material, hank size, batch quantity and finishing requirements should all be considered before selection.
Please provide the following information so we can confirm whether Y10 is suitable:
Send us your yarn material, yarn count, hank size and required batch capacity. We will help confirm the suitable machine configuration for your application.
