Hank Yarn Dyeing Machine(HT)

You are in:

/ Home /Hank Yarn Dyeing Machine(HT) /200KG high pressure polyester skein hank yarn dyeing machine vertical type
high pressure hank dyeing machine

200KG high pressure polyester skein hank yarn dyeing machine vertical type

TY-VH-170 model high pressure hank yarn dyeing machine is adopt high temperature immersion dyeing, it is specially suitale for dyeing 100% polyester yarn,  chenille, half fleece yarn, carpt yarn etc.

  • Model :

    TY-VH-170

  • Payment :

    LC; T/T

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now

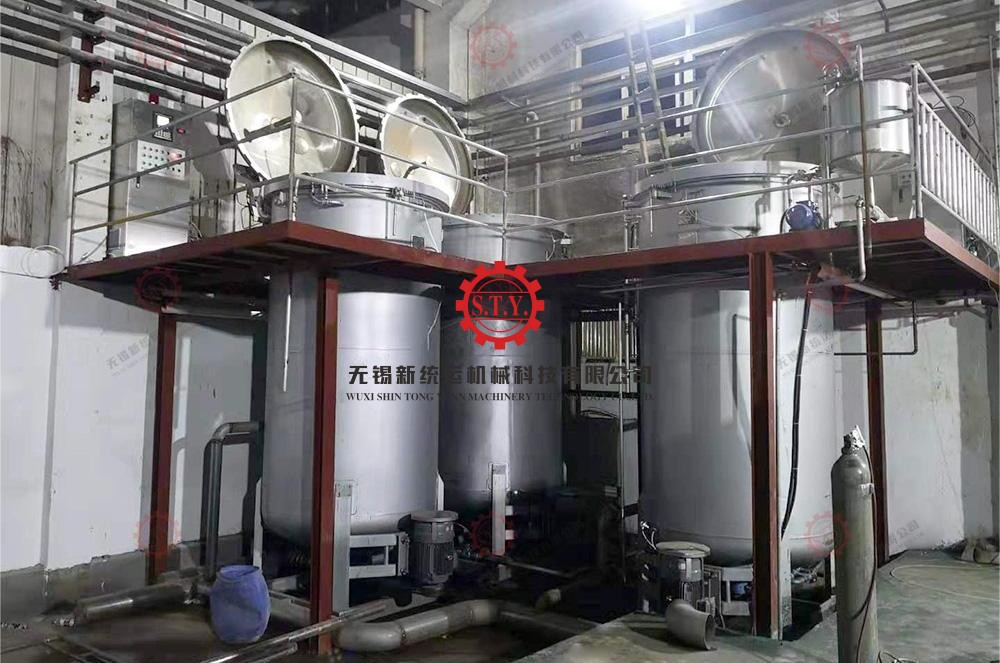

high temperature hank dyeing machine

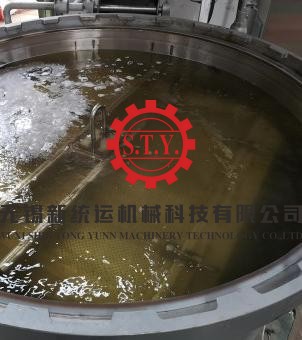

  • immersion dyeing machine
    Immersion Dyeing
    The carrier is completely immersed in the dye liquor, doing dyeing processing.

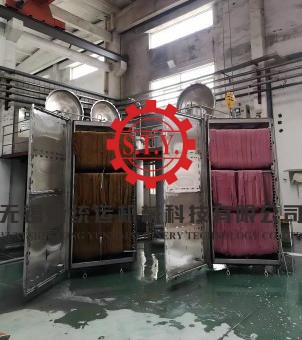

  • carrier of skein dyeing machine
    Loading Yarn Into Carrier
    Hank yarn is hang on bar, then put inside to the carrier box.
  • plywood box packing
    Packing
    Plywood box packing electrical cabinet, spare parts and so on.

PRODUCT FEATURE

  • Parts of TY-VH high pressure hank yarn dyeing machine contact with dyeing liquor, which is used high quality corrosion resistance stainless steel.
  • The distance between bar to bar can be adjustable according the length of hank yarn, more wide application range.
  • Vertical hank dyeing machine is equipped with precise reverse turning controller, ensure dyeing evenly.
  • Circulation pump of high pressure skein dyeing machine with frequency inverter, different material of yarn and different dyeing technology can be adjusted the speed.



STANDARD STRUCTURE

  • Hank yarn carrier
  • Indirect heating system
  • Duplicate liquid level gauge
  • Opening cover by air cylinder



OPTIONAL CONFIGURATION

  • Second hank yarn carrier
  • Auto/ Semi-auto system



SPECIFICATION

TY-VH SERIES HIGH PRESSURE HANK YARN DYEING MACHINE
MODEL LAYER OF CARRIER CAPACITY(kg) POWER(kw)
TY-VH-170 3 200 22
TY-VH-170 2 130 15
TY-VH-120 2 50 7.5
TY-VH-50 1 5 2.2
