Hank Yarn Dyeing Machine(HT)

You are in:

/ Home /Hank Yarn Dyeing Machine(HT) /Steam heating high pressure polyester spray hank yarn dyeing machine
hthp hank yarn dyeing machine

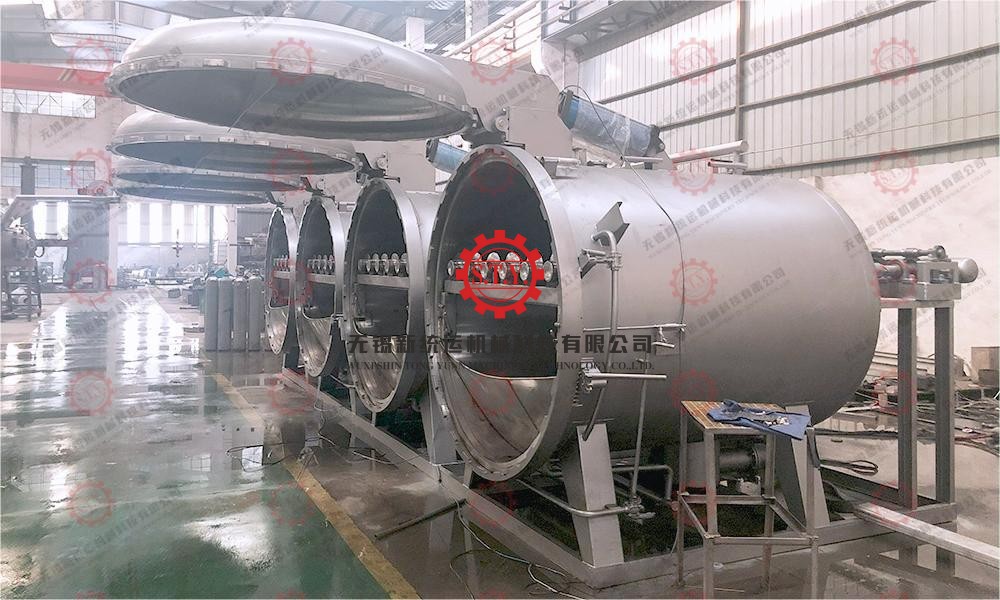

Steam heating high pressure polyester spray hank yarn dyeing machine

GSH-6-200 (opening cover by air cylinder) type high temperature spray hank yarn dyeing machine is mainly for dyeing polyester yarn in hank type.

  • Model :

    GSH-6

  • Payment :

    LC; T/T

  • Product Origin :

    China

  • Shipping Port :

    Shanghai Port, China
Inquiry now

polyester yarn dyeing machine

  • high pressure hank dyeing machine
    Dyeing

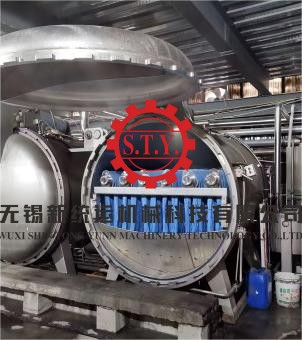

    The spray hank yarn dyeing machine is running in customer's factory.
  • hank yarn dyeing machine manufacturer
    Manufacture

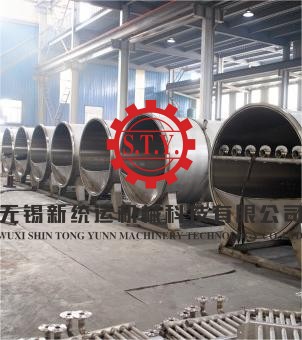

    Manufacture high pressure hank dyeing machine.

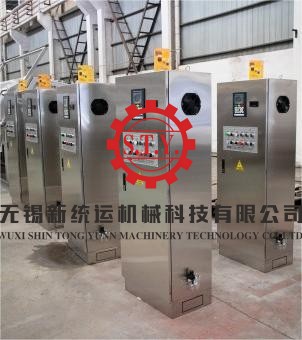

  • electrical cabinet of hank dyeing machine
    Electrical Cabinet
    Complete the machanical parts processing, the electrical cabinet will be connected and tested before shipment.

PRODUCT FEATURE

  • GSH series hank yarn dyeing machine is equipped with Max. 2 meter spray pipe, develop the dyeing capacity per batch, decrease the color difference and improve the dyeing result.
  • All parts of hank dyeing machine contact with dyeing liquor are used high quality corrosion resistance stainless steel.
  • High pressure dyeing machine is equipped with multiple sets of safety operation system.
  • Innovative water pump design, anti cavitation ability is strong, still has a strong injection ability under high temperature; large flow special purpose water pump, have better performance and high efficiency, longer service time, the most important is the water quantity is stable during dyeing, ensure dyeing color evenly.
  • The water pump of skein dyeing machine is equipped frequency inverter, adapt to dyeing different types of hank yarn.
  • It is equipped smart controller, easy to operate, improving dyeing efficient, save dyeing cost.



STANDARD STRUCTURE

  • Main body of dyeing machine is high quality corrosion resistant stainless steel
  • Stainless steel spray pipe
  • With transmission device for spray pipe
  • Large flow water pump
  • Dyestuff tank : mixing, heating, backflow, feeding and cleaning
  • Internal type heating exchanger
  • Water level indicator
  • Hank yarn load in and out device; cleaning spray pipe tool



OPTIONAL CONFIGURATION

  • Auto/Semi Auto control system
  • The second inflow and the second drain
  • Dyestuff tank with auto system
  • Dosing system
  • Second dyestuff tank
  • Preparation tank
  • The length of spray pipe: L=1200mm/1500mm/2000mm



SPECIFICATION

GSH HIGH TEMPERATURE HIGH PRESSURE HANK YARN DYEING MACHINE

MODEL CAPACITY(KG) NO. OF SPRAY PIPE MAIN POWER(KW)
GSH-1-60 5 1 1.1
GSH-2-60 10 2 2.2
GSH-2-150 20 2 3
GSH-3-150 30 3 4
GSH-4-150 40 4 5.5
GSH-6-200 120 6 7.5
GSH-6X2-200 240 12 15
GSH-6X4-200 480 24 22
GSH-6X6-200 720 36 37
GSH-6X8-200 960 48 45
