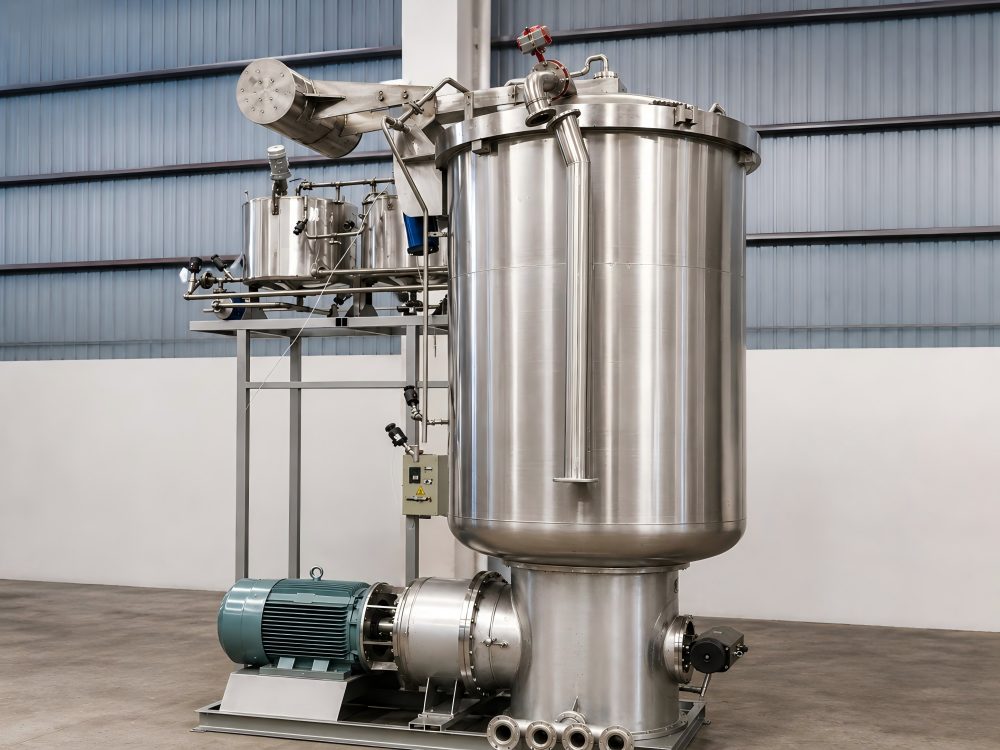

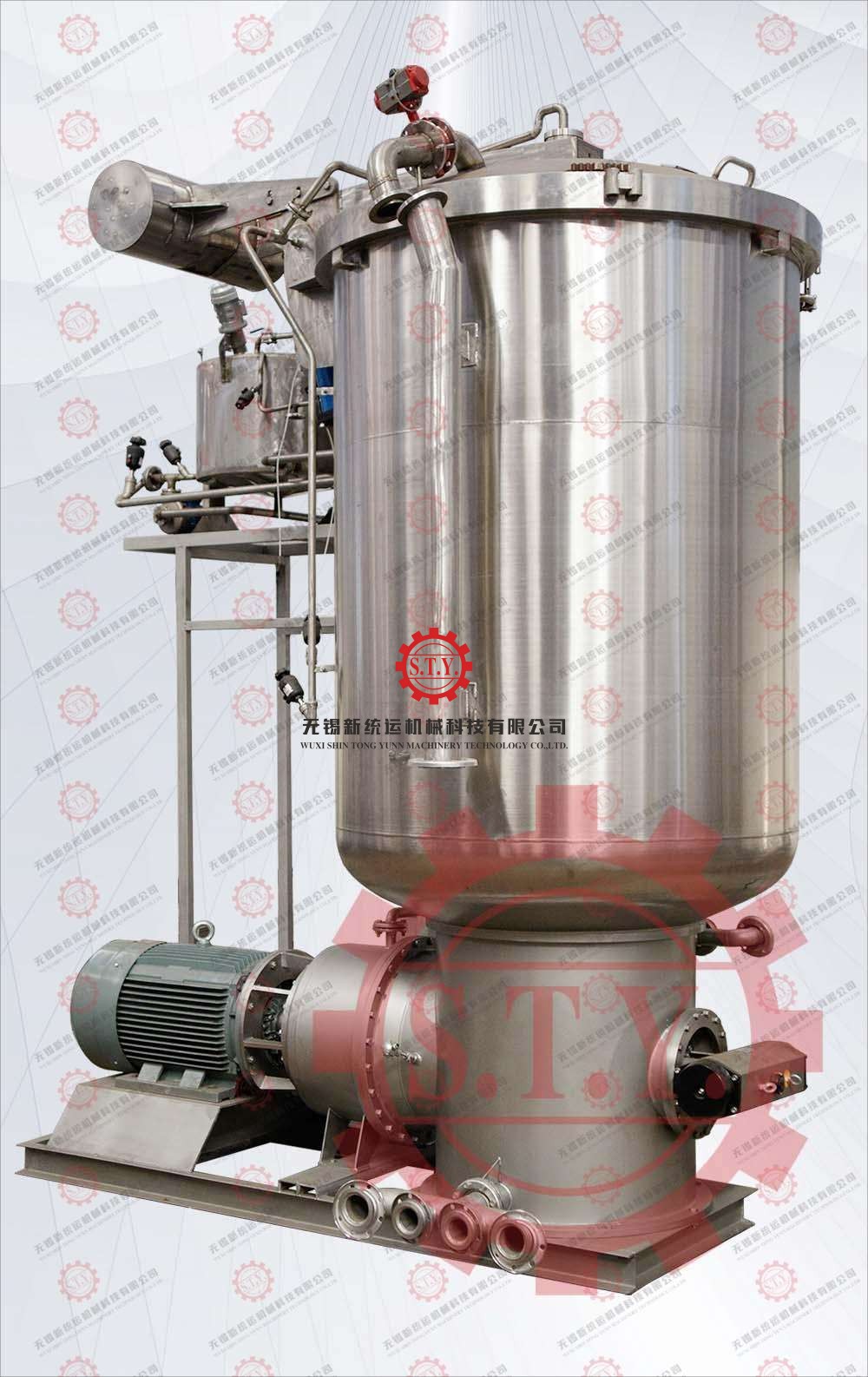

DF241-200 is a large-capacity HTHP package yarn dyeing machine designed for industrial cone, bobbin and cheese yarn dyeing. This configuration uses 108 spindle rods with 10 package layers, providing 1080 standard package positions and an approximate capacity of 1080 kg per batch when each package weighs about 1 kg. It features reversible liquor circulation, steam heating, 316L wetted parts and automatic dyeing control.
Model :
DF241Payment :
LC;T/TProduct Origin :
ChinaShipping Port :
Shanghai Port, ChinaHS Code :
8451400000DF241-200 is a large-capacity HTHP package yarn dyeing machine for industrial cone, bobbin and cheese yarn dyeing. The configuration introduced on this page uses 108 spindle rods with 10 package layers, providing 1080 standard package positions and an approximate batch capacity of 1080 kg when each package weighs about 1 kg.
Reversible liquor circulation, steam heating, 316L stainless steel wetted parts and automatic dyeing control are included in the standard machine configuration. Actual loading capacity should be confirmed according to yarn package dimensions, package weight and carrier arrangement.

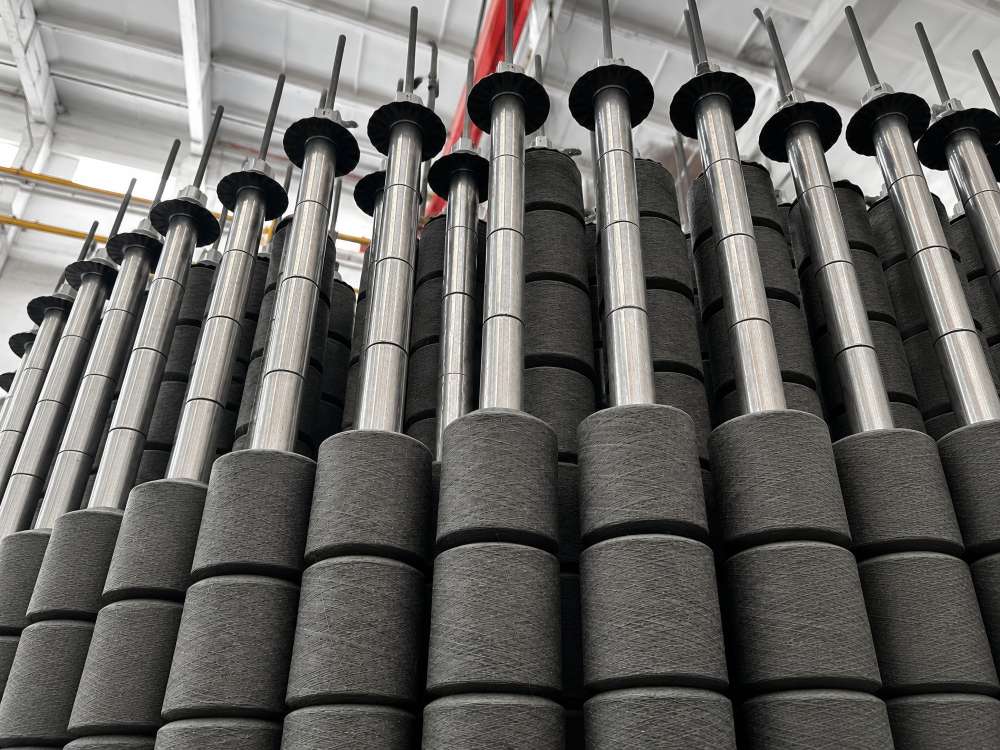

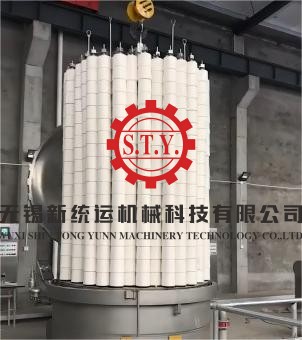

DF241-200 is one of our package yarn dyeing machine configurations designed for large-batch industrial production. Yarn packages are loaded on dye tubes inside the carrier, where package dimensions, winding condition, liquor circulation and carrier arrangement are important considerations for machine selection.
Dye liquor circulates through yarn packages in both inside-to-outside and outside-to-inside directions. This reversible circulation allows liquor to pass through wound yarn layers from both directions during the dyeing process.
DF241-200 is used for dyeing yarn wound in package form, including cone, bobbin and cheese yarn. Machine configuration and process conditions should be selected according to yarn material, package dimensions and required dyeing temperature.
For more information about package size, yarn material and machine selection, see our package yarn dyeing machine application guide .

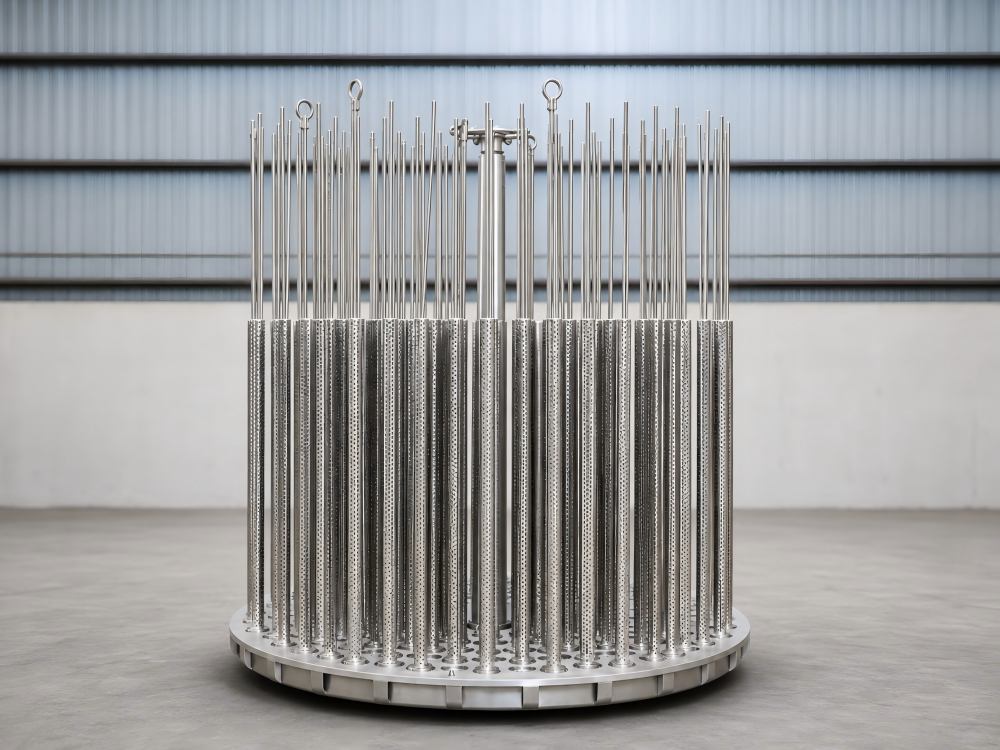

DF241-200 is configured with 108 spindle rods and 10 package layers, providing a total of 1080 standard package positions.
| Spindle rods | 108 |
| Package layers | 10 |
| Total package positions | 1080 packages |
| Reference batch capacity | Approx. 1080 kg/batch* |
When each yarn package weighs approximately 1 kg, reference batch capacity is around 1080 kg.
Actual loading capacity is not fixed. It varies according to package diameter, dye tube height, package weight, yarn density and carrier arrangement. Package specifications should therefore be confirmed before final carrier design and quotation.
| Machine Type | HTHP package yarn dyeing machine |
| Model | DF241-200 |
| Main Tank Diameter | 2000 mm |
| Package Arrangement | 108 spindle rods × 10 layers |
| Yarn Package Quantity | 1080 standard packages |
| Approx. Loading Capacity | Approx. 1080 kg based on 1 kg per standard package |
| Standard Package Diameter | Approx. 165 mm |
| Dye Tube Height | 170–171 mm |
| Main Power | 90 kW |
| Max. Working Temperature | 140°C |
| Design Pressure | 4.4 bar |
| Liquor Ratio | Approx. 1:6 |
| Standard Heating Method | Steam heating |
| Voltage / Frequency | 380V / 50Hz |
| Material of Wetted Parts | Stainless steel 316L |

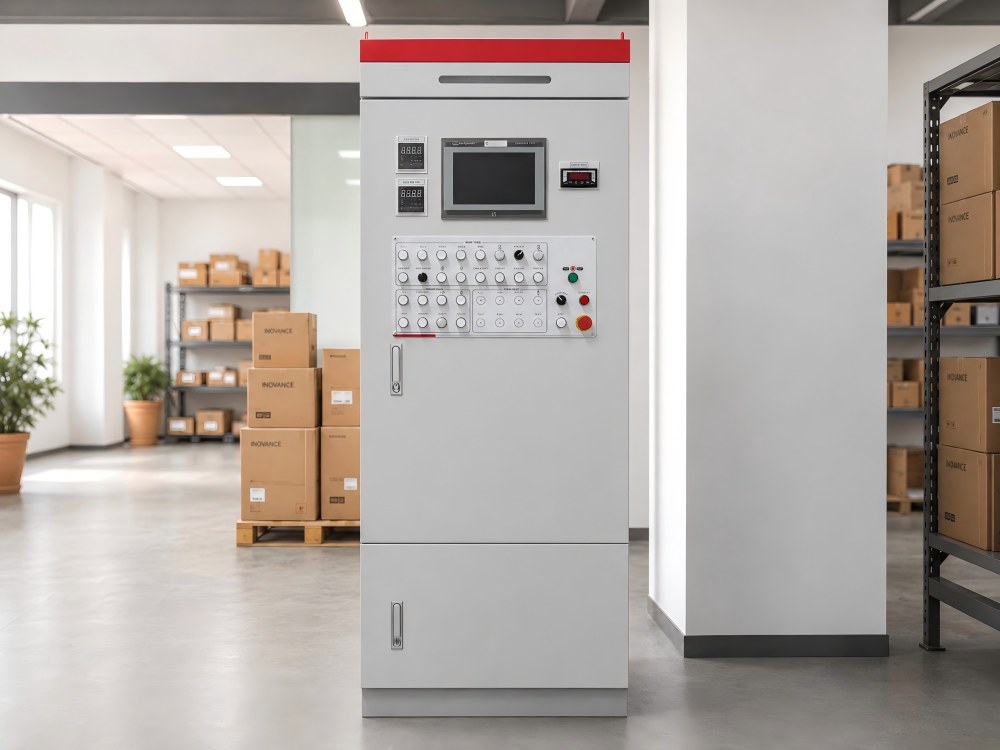

| Control System | Chinese automatic dyeing controller as standard; SEDO optional |

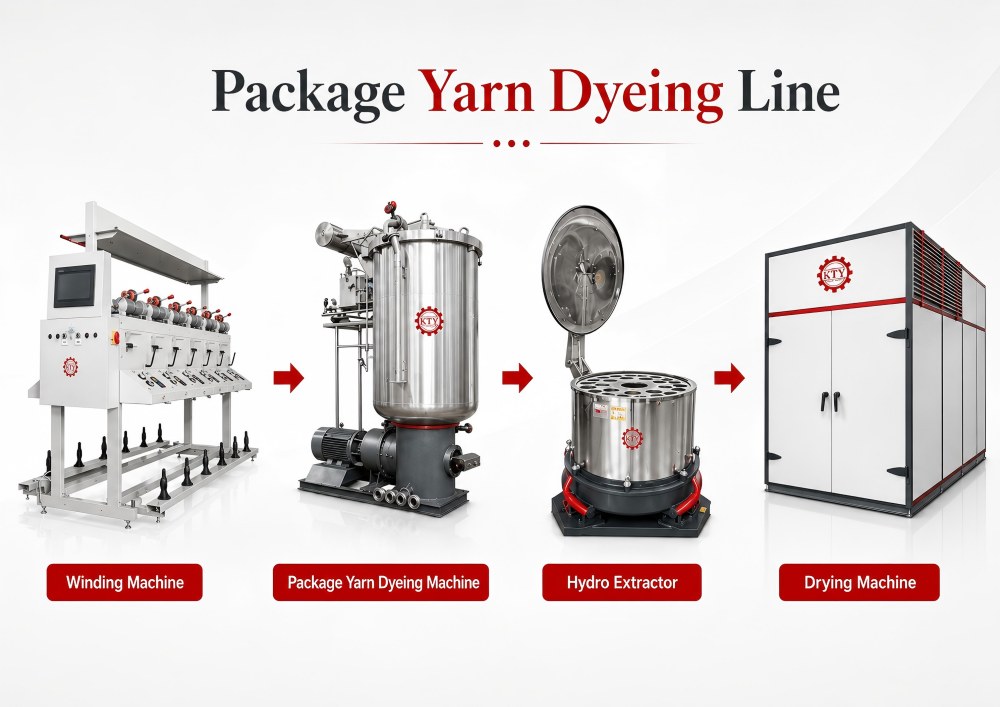

A package yarn production line may include soft winding machine , package yarn dyeing machine, textile hydro extractor , package yarn dryer and rewinding equipment.
For lab testing, shade confirmation and small-batch process trials before bulk production, customers can also use a DF241-21 lab package yarn dyeing machine .
DF241 series is available in different vessel sizes and carrier arrangements for different batch capacities. DF241-200 introduced on this page is configured for 1080 standard yarn packages, while smaller models are available for lower production requirements.
| Model | Reference Package Quantity | Reference Capacity* | Main Power |
|---|---|---|---|
| DF241-75 | 72 packages | Approx. 72 kg | 11 kW |
| DF241-120 | 252 / 288 packages | Approx. 252–288 kg | 22–30 kW |
| DF241-170 | 690 packages | Approx. 690 kg | 55 kW |
| DF241-200 | 1080 packages | Approx. 1080 kg | 90 kW |
*Reference capacity is calculated based on approximately 1 kg per standard yarn package. Actual loading capacity should be confirmed according to package dimensions, package weight and carrier arrangement.
To confirm a suitable DF241 model and carrier arrangement, please provide the following information:
The following answers are based on the DF241-200 configuration introduced on this page. Final loading capacity and carrier design should be confirmed according to actual yarn package specifications.
The configuration introduced on this page uses 108 spindle rods with 10 package layers, providing 1080 standard yarn package positions.
No. Approx. 1080 kg is based on 1080 yarn packages weighing about 1 kg each. Actual loading capacity should be confirmed according to package dimensions, package weight and carrier arrangement.
Standard reference package diameter is approximately 165 mm, with dye tube height of about 170–171 mm. Different package dimensions may require a customized carrier arrangement.
Dye liquor circulates through yarn packages in both inside-to-outside and outside-to-inside directions, allowing liquor to pass through wound yarn layers from both directions.
Maximum working temperature is 140°C. Reference liquor ratio is approximately 1:6.
Yes. Chinese automatic dyeing controller is supplied as standard. SEDO controller can be selected as optional configuration.
Send us your yarn material, package diameter, dye tube height, package weight and required batch capacity. We can check the suitable DF241 model, package carrier arrangement and reference loading capacity for your production.
