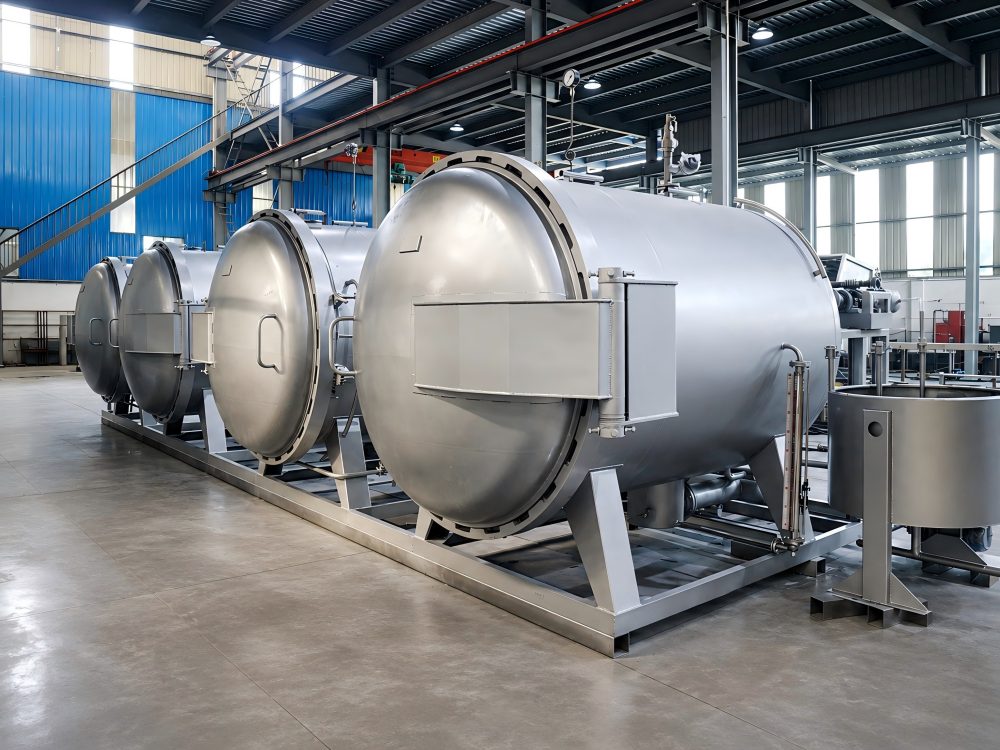

GSH-6X4-200 is a high-capacity high temperature and high pressure spray hank yarn dyeing machine designed for polyester and other suitable synthetic hank yarns. With a maximum loading capacity of up to 600 kg per batch, 24 × 2000 mm spray pipes and inverter-controlled liquor circulation, it is suitable for industrial large-batch hank yarn dyeing production.
Model :
GSH-6X4Payment :
LC; T/TProduct Origin :
CHINAShipping Port :
Shanghai Port, ChinaHS Code :
8451400000
GSH-6X4-200 is a high-capacity spray hank yarn dyeing machine for polyester and other suitable synthetic hank yarns requiring high-temperature pressure dyeing. The machine is equipped with 24 spray pipes, each 2000 mm long, and has a maximum loading capacity of up to 600 kg per batch.
GSH-6X4-200 is mainly designed for polyester hank yarn and suitable synthetic yarns that require high-temperature pressure dyeing.
For cotton, wool, viscose, acrylic or other yarns that do not require high-temperature pressure dyeing, a normal-temperature hank yarn dyeing machine may be more suitable.
| Parameter | Specification |
|---|---|
| Model | GSH-6X4-200 |
| Machine Type | High temperature high pressure spray hank yarn dyeing machine |
| Maximum Loading Capacity | Up to 600 kg/batch, depending on yarn and loading conditions |
| Spray Pipes | 24 pcs |
| Spray Pipe Length | 2000 mm |
| Main Motor Power | 22 kW |
| Design Temperature | 140°C |
| Maximum Working Temperature | 135°C |
| Maximum Working Pressure | 0.4 MPa |
| Heating | Steam heating |
| Circulation Control | Circulation pump with inverter-controlled main motor |
| Control | Semi-automatic or automatic configuration available |
Final technical configuration should follow the confirmed quotation and technical agreement.
The maximum loading capacity is up to 600 kg per batch, but this does not mean every yarn can be loaded to exactly 600 kg. Real capacity must be checked according to:
Before quotation or model confirmation, we recommend providing actual yarn data so loading capacity can be checked against the intended production requirement.
Polyester hank yarn normally requires a dyeing temperature around 130°C. Because this temperature is above the atmospheric boiling point of water, the dyeing process must be carried out in a closed pressure vessel. GSH-6X4-200 is designed for this process with a design temperature of 140°C, maximum working temperature of 135°C and maximum working pressure of 0.4 MPa.

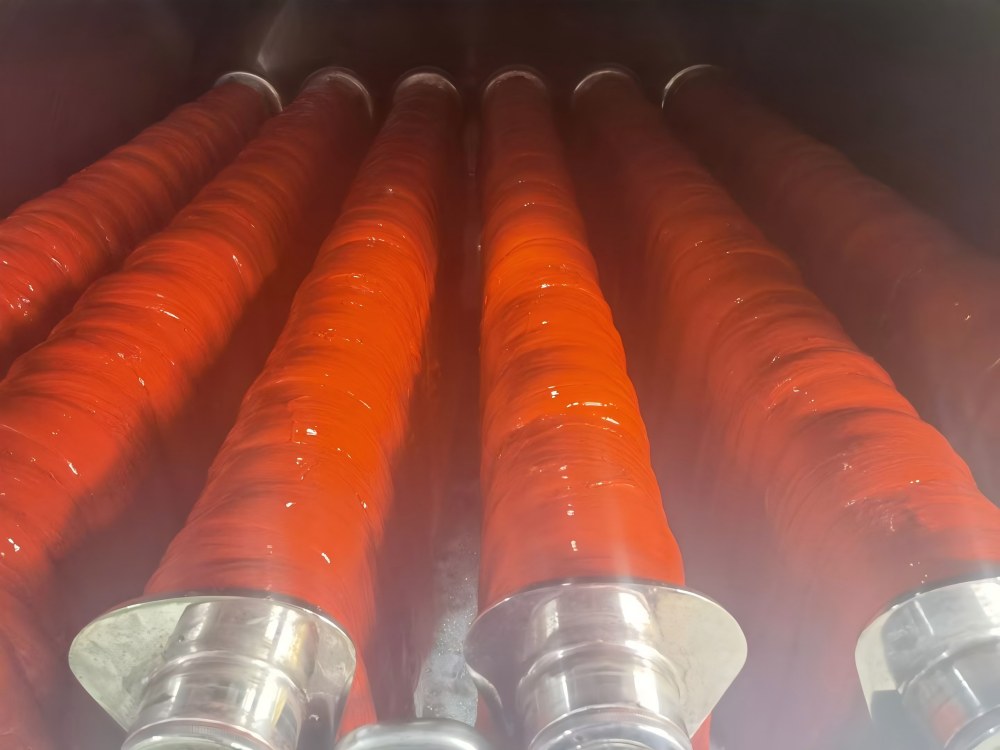

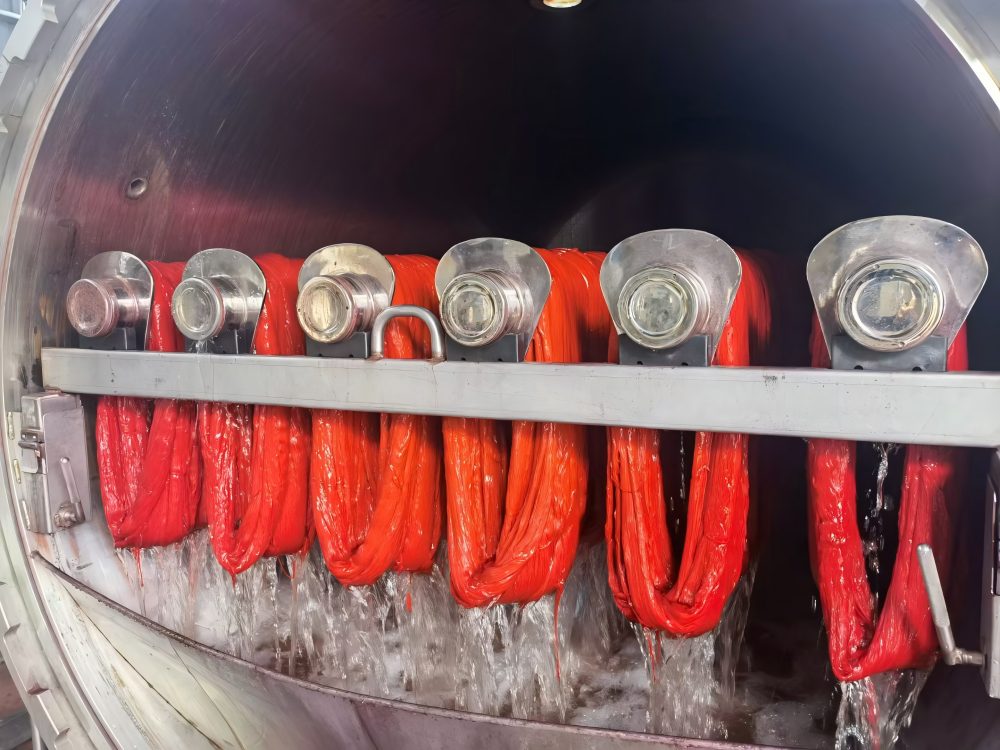

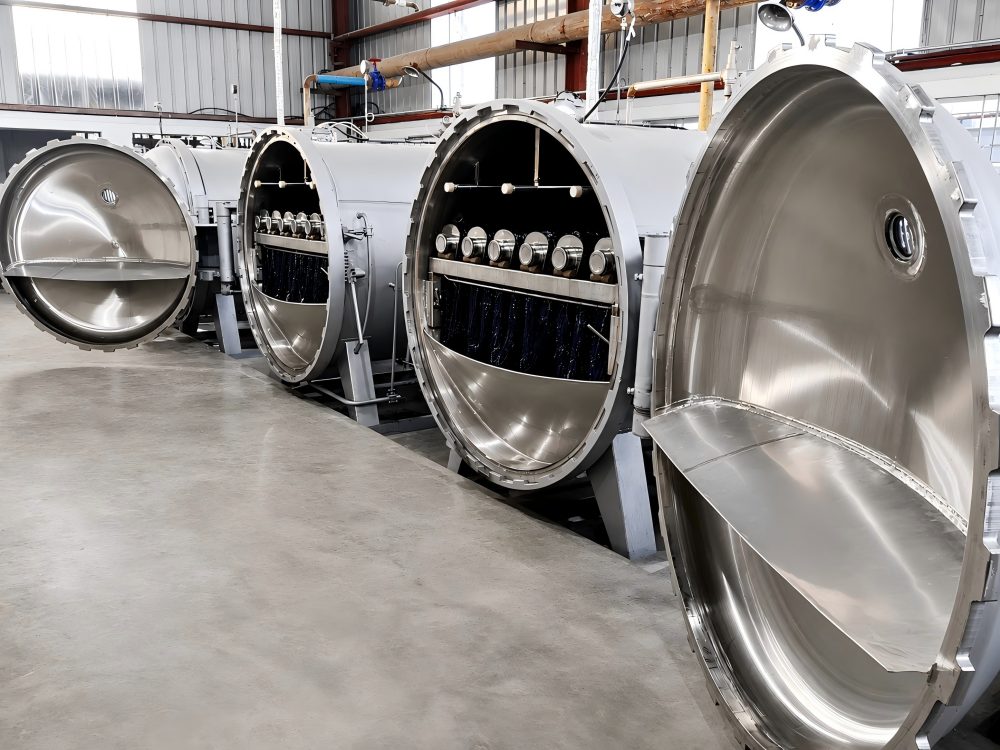

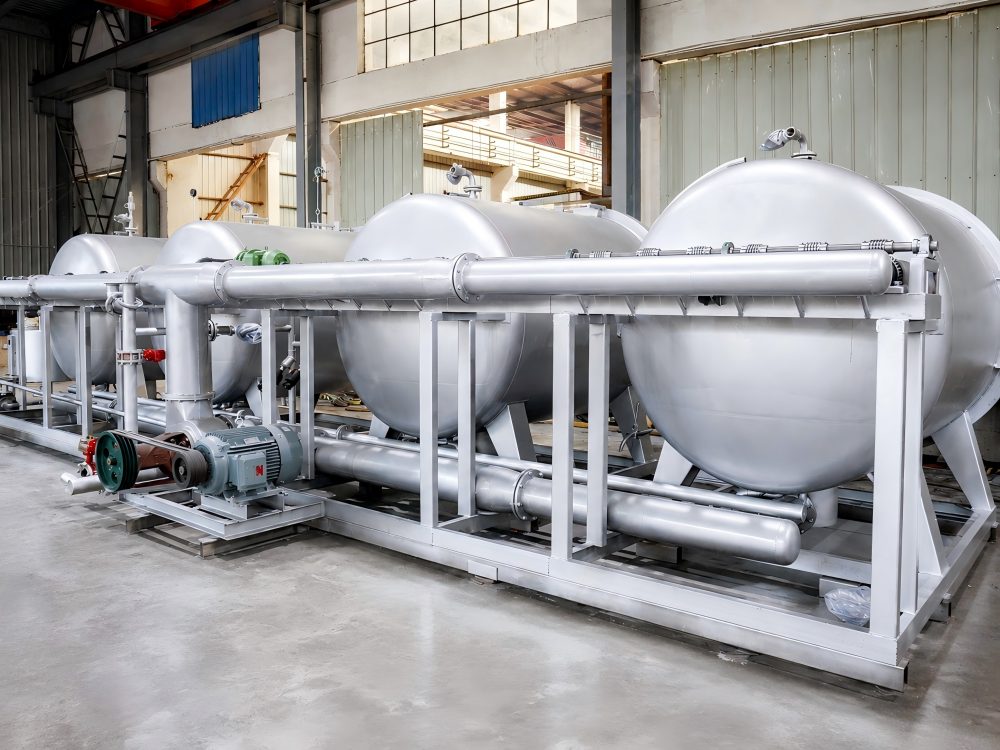

During dyeing, liquor is circulated through stainless steel spray pipes and repeatedly passes through the loaded hank yarn. Main pump speed can be adjusted by frequency inverter according to yarn type, batch loading and process requirement.
| Standard Structure | Optional Configuration |
|---|---|
| 24 stainless steel spray pipes | Automatic process control |
| Stainless steel circulation pump | Automatic dosing system |
| Inverter control for main motor | Automatic cover opening and closing |
| Stainless steel parts in contact with dye liquor | Electrical configuration for local power supply |
| Dyestuff tank | Other control options according to project requirement |
This model is suitable when the dyehouse requires large-batch high-temperature hank yarn production. Machine selection should be based on actual production volume and yarn loading data, not only on maximum nominal capacity.
Please provide the following information before model confirmation:
For other capacities, see our high temperature hank yarn dyeing machine range.
No. It is the maximum loading capacity. Actual loading depends on yarn structure, hank size, yarn count, bulkiness and process requirement.
It is mainly designed for polyester hank yarn and other suitable synthetic yarns requiring high-temperature pressure dyeing.
Polyester is normally dyed at around 130°C. A closed pressure vessel is therefore required to operate safely above the atmospheric boiling point of water.
Please provide yarn material, yarn count, hank size, single-hank weight, target batch capacity, steam condition, voltage and frequency.
Send us your yarn details and required batch capacity. We will check whether GSH-6X4-200 is suitable and recommend the corresponding configuration.
