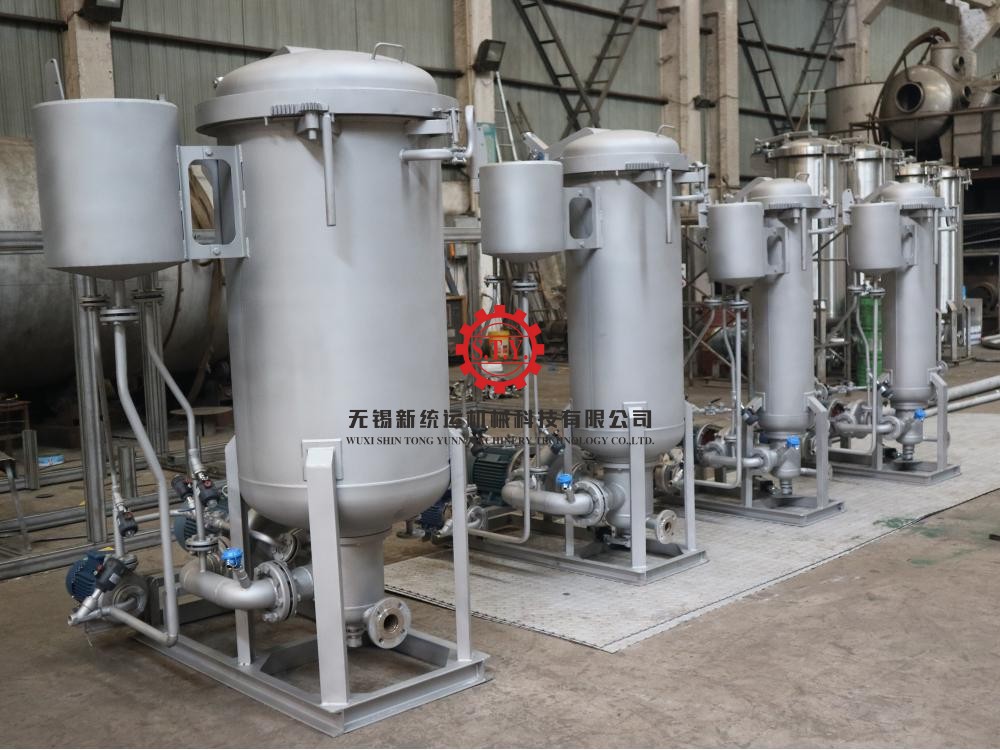

50KG capacity High pressure textile bobbin yarn dyeing machinery

• Bobbin yarn dyeing machine uses efficient and energy saving design, such as internal high-efficiency tube heat exchanger and innovative pump, enhancing heat exchanger efficiency and energy utilization.
• Low liquor ratio design significantly reduce consumption of dyestuff, steam, water and waste water discharge, decrease production cost.
• High pressure cone dyeing machine is equipped frequency inverter for main pump, enabling stepless flow control and synchornizing the dyeing requirements according to process cruve, improving production efficiency and stability.
•  Features unique and reliable reversing devices and flow reverse technology, ensuring main pump dosen't pause during running processing, increseing circulation frequency and improving dyeing stability and uniformity.

PRODUCT STRUCTURE

• All liquor-carring main parts are used stainless steel 316L.
• Main pump motor with frequency inverter.
• High-efficient stainless steel pump.
• Complete one set cone yarn carrier.
• 90° pipe type reversing direction reverser.
• Internal heating exchanger system.
• Dyestuff tank: mixing, drain, heating, adding dystuff.
• Pressure relief device/system.
• Stainless steel electrical cabinet with advanced computer.

OPTIONAL CONFIGURATION

• Semi auto/ auto system
• Equal volume standby water tank with direct heating system
• Second inflow and second drain system
• Second set cone yarn carrier
• Second dyestuff tank with auto/semi auto control system

SPECIFICATION
