Normal temperature spray skein hank yarn dyeing machine

PRODUCT FEATURES

• Normal pressure hank yarn dyeing machine is suitable dyeing: chevilled silk, sub-thread spun yarn, rayon, viscose, pure cotton, cotton acrylic blend, mercerized cotton yarn (silk cotton yarn/mercerized cotton spun yarn), spun silk(yarn), silk, cashmere, blended yarn and so on
• It is suitable for bleaching, refining, dyeing, washing and postprocessing.
• Hank yarn dyeing machine is equipped with large flow special purpose water pump, have better performance and high efficiency, longer service time, the most important is the water quantity is stable during dyeing.

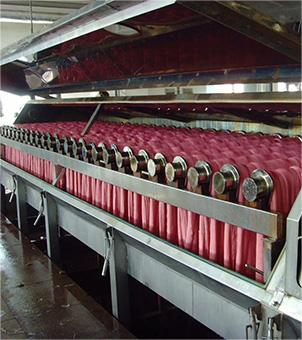

• The new designed spray type dyeing pipe, after dyeing, reduce the yarn loss
• Normal temperature hank yarn dyeing machine structure optimization, liquor ratio (bath ratio) as low as 1:6-7, save cost.
• It is equipped with smart controller and frequency inverter

STANDARD STRUCTURE

• Main body of dyeing machine is high quality corrosion resistant stainless steel
• Stainless steel spray pipe
• With transmission device for spray pipe
• Large flow water pump
• Dyestuff tank : mixing, heating, backflow, feeding and cleaning
• Internal type heating exchanger
• Water level indicator
• Hank yarn load in and out device; cleaning spray pipe tool

OPTIONAL CONFIGURATION

• Auto/Semi Auto control system
• Dosing system
• The second inflow and the second drain
• Dyestuff tank with auto system
• The length of spray pipe: L=1200mm/1500mm/2000mm

SPECIFICATION
