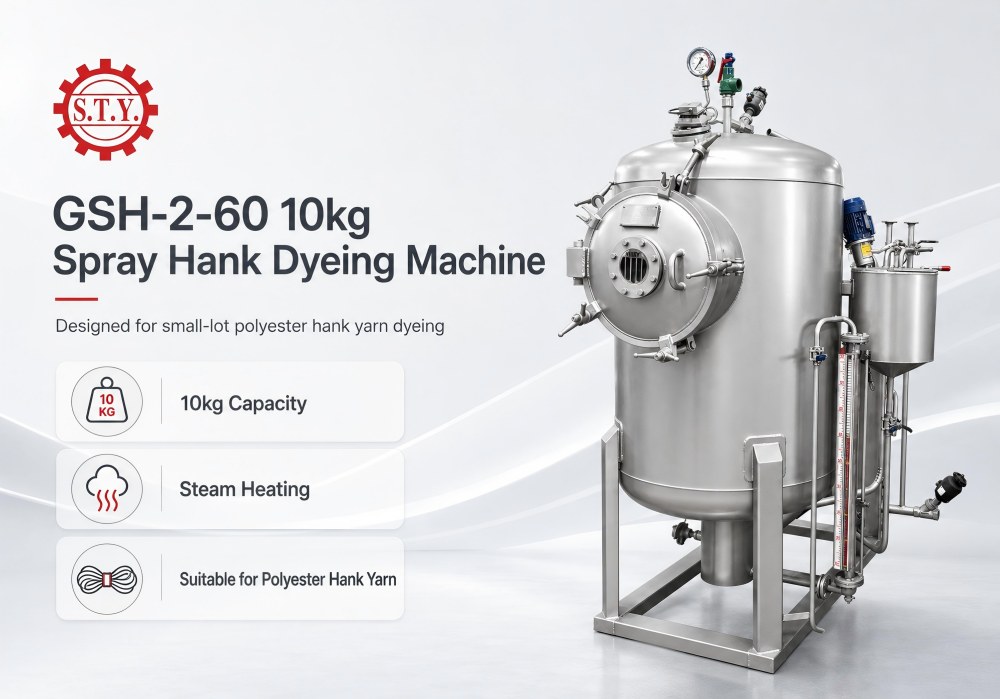

GSH-2-60 is a 10kg high temperature spray hank yarn dyeing machine designed for small-lot polyester hank yarn dyeing, polyester blended hank yarn dyeing and chenille yarn dyeing. Equipped with two 600mm spray pipes, steam heating, reversible liquor circulation, stainless steel dye liquor contact parts and semi-automatic control system, this model is suitable for trial production, shade confirmation and small batch production where 5kg sampling capacity is not enough.
Model :
GSH-2-60Payment :
T/T; LCProduct Origin :
ChinaShipping Port :
Shanghai Port, ChinaHS Code :
8451400000GSH-2-60 is designed for 10kg small-lot dyeing of polyester hank yarn, polyester blended yarn, chenille yarn and suitable synthetic hank yarns. With two 600mm spray pipes, steam heating, reversible liquor circulation and stainless steel dye liquor contact parts, this model fits trial production, shade confirmation and small batch production where 5kg sampling capacity is not enough.
GSH-2-60 belongs to Shin Tong Yunn GSH high temperature spray hank dyeing series. It is mainly used when customers need more loading capacity than a laboratory sample machine, but do not require large production capacity. Two-pipe spray structure makes this unit suitable for small orders, repeat shade testing and trial batches before larger production.
Spray circulation sends dye liquor through spray pipes and distributes liquor onto hank yarn evenly. Proper loading, stable heating and controlled circulation help improve liquor penetration and dyeing consistency for suitable synthetic hank yarn materials.
If regular batch capacity is higher than 10kg, you can also view other GSH high-temperature models for larger production requirements.
Choose GSH-2-60 when target batch capacity is around 10kg and yarn requires high temperature dyeing, such as polyester hank yarn or polyester blended hank yarn. For recipe testing or very small samples, GSH-1-60 5kg model may be enough. For regular production above 10kg per batch, larger GSH models can be selected according to hank length, yarn density and production target.
If 10kg per batch is not enough for regular production, you can compare with the 20kg GSH-2-150 model.
This 10kg model is suitable for small-batch high temperature dyeing processes, especially for synthetic yarns in hank form.
Actual loading capacity depends on hank size, yarn count, yarn density, material type and dyeing process. Before model confirmation, please check hank length, single hank weight, target batch capacity and required dyeing temperature.
| Model | GSH-2-60 |
| Machine Type | High temperature spray hank yarn dyeing machine |
| Recommended Loading Capacity | Around 10kg per batch |
| Spray Pipe Quantity | 2 spray pipes |
| Spray Pipe Length | 600mm |
| Main Motor Power | 1.5kW |
| Design Temperature | 140℃ |
| Maximum Working Temperature | 135℃ |
| Maximum Working Pressure | 0.4MPa |
| Heating Method | Steam heating as standard; other heating methods can be discussed according to project requirements |
| Suitable Yarn | Polyester hank yarn, polyester blended hank yarn, chenille yarn and suitable synthetic hank yarns |

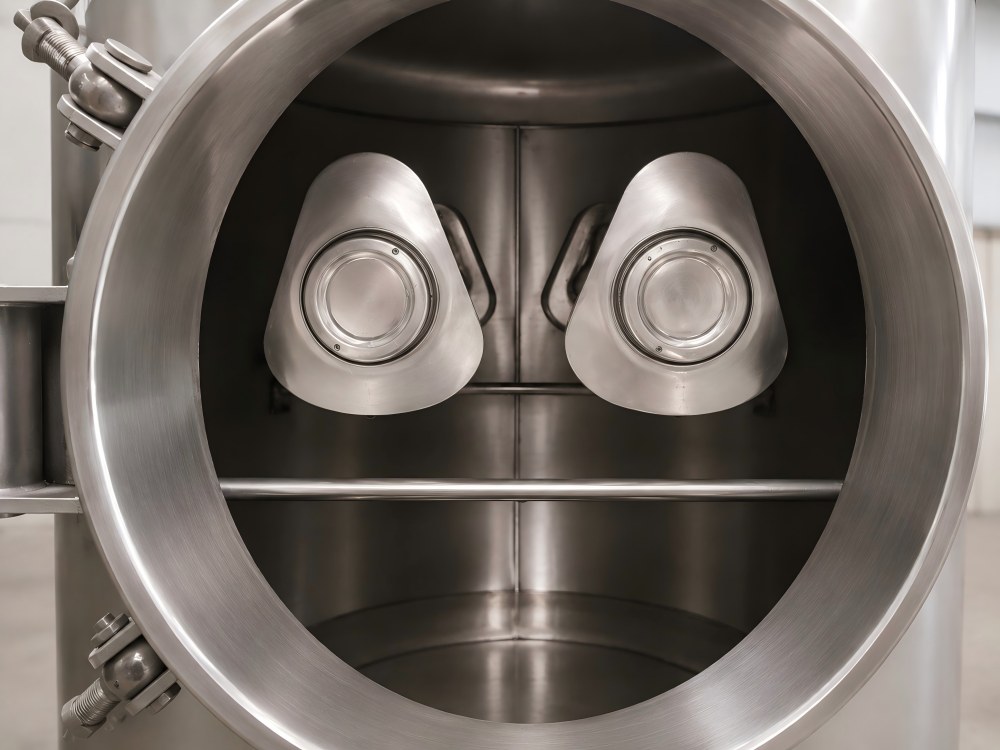

Two 600mm spray pipes provide higher loading quantity than single-pipe sample models. This structure works well for workshops that need small-lot production instead of only laboratory sampling.
Spray circulation helps dye liquor reach hank yarn from different directions. With correct yarn loading and suitable process control, this structure supports stable dyeing performance for trial batches and small production orders.
| Item | GSH-1-60 | GSH-2-60 |
|---|---|---|
| Recommended Capacity | Around 5kg | Around 10kg |
| Spray Pipe Quantity | 1 spray pipe | 2 spray pipes |
| Typical Use | Recipe testing, sample dyeing, very small batches | Trial production, shade confirmation, small production batches |
| Suitable Customer | Laboratory, sampling room, test workshop | Small dyeing workshop, yarn processor, trial production line |
For laboratory recipe development, the GSH-1-60 5kg model is usually more economical. For regular small orders or higher sample output, GSH-2-60 gives more practical batch capacity.

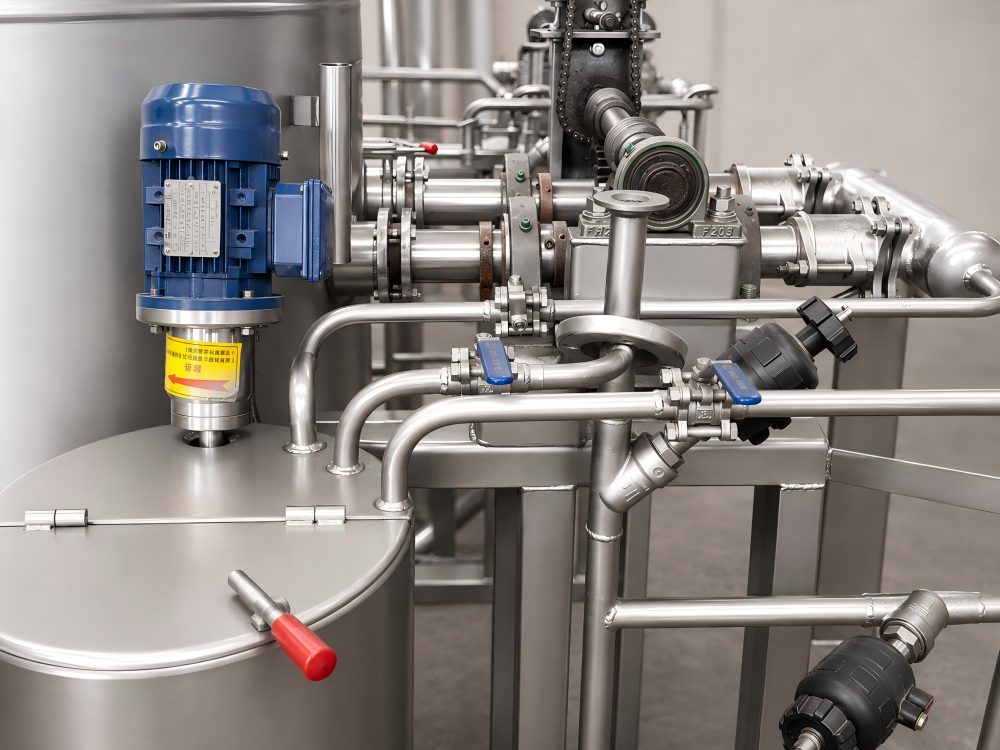

Compact vertical pressure vessel structure supports high temperature dyeing requirements. Dye liquor contact parts use stainless steel for process stability and corrosion resistance. Standard configuration can be adjusted according to automation level, yarn process and customer budget.

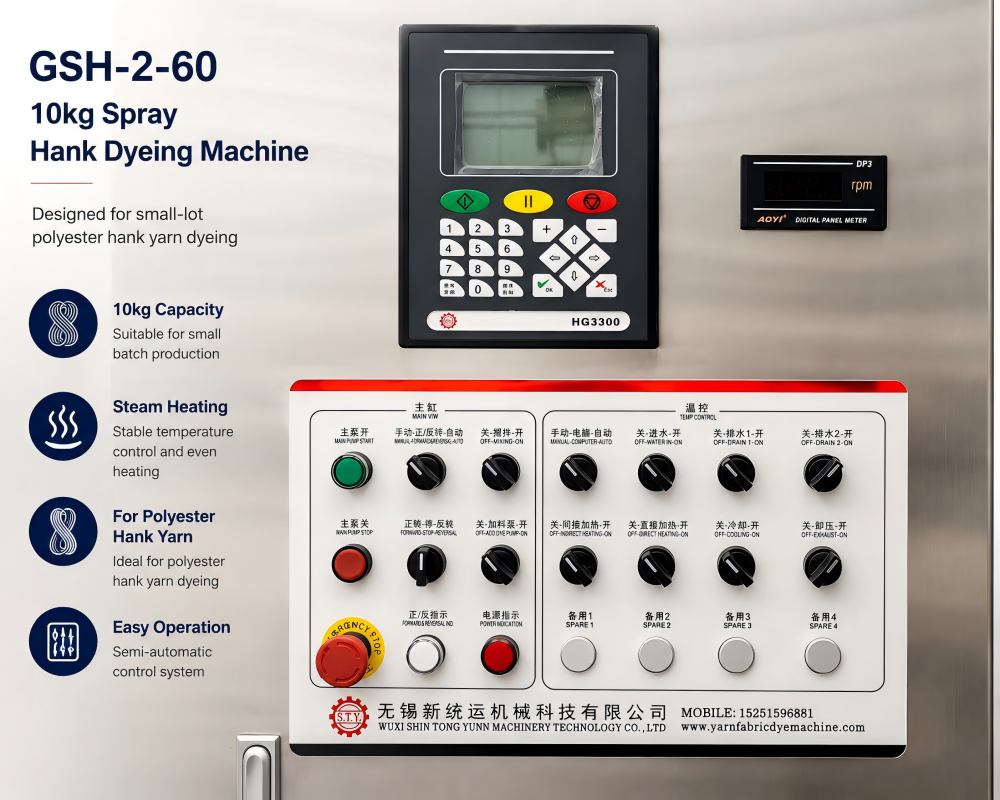

GSH-2-60 can be supplied with semi-automatic control as standard. The operation panel supports temperature control, pump operation, valve control and process management. Control system configuration can be adjusted according to customer process requirement and automation level.
Final configuration can be matched with production process, budget and automation requirements. Common options include:
For complete hank yarn processing, matching hank yarn drying equipment can also be selected according to batch capacity and moisture control requirement.
For accurate model selection, please prepare following details:
If you are not sure whether to choose normal-temperature spray type, high-temperature spray type or immersion type, please read our hank yarn dyeing machine application guide before confirming model direction.
10kg capacity is reference loading capacity. Actual batch weight may change because of yarn count, hank size, material density and process requirement. Shin Tong Yunn can check yarn information and recommend suitable spray pipe length, model size and auxiliary equipment arrangement.
Yes. GSH-2-60 is designed for high temperature dyeing and can be used for polyester hank yarn, polyester blended yarn and suitable synthetic hank yarns requiring high temperature process.
GSH-1-60 is around 5kg capacity with one spray pipe. GSH-2-60 is around 10kg capacity with two spray pipes. 5kg model suits sampling and recipe testing. 10kg model suits trial production and small production batches.
It can be considered for suitable chenille hank yarn dyeing. Chenille yarn structure, yarn density and hank form should be checked before final model selection to avoid overloading or uneven circulation.
No. 10kg is reference value. Actual capacity depends on yarn count, hank size, material, packing density and dyeing process. Yarn details should be confirmed before finalizing model.
Yes. Standard configuration can use semi-automatic control. If higher automation is required, control system and related valves can be configured according to dyeing process.
Send yarn material, hank size, target batch capacity, dyeing temperature and heating method. We will check model suitability and suggest practical configuration for your production process.
