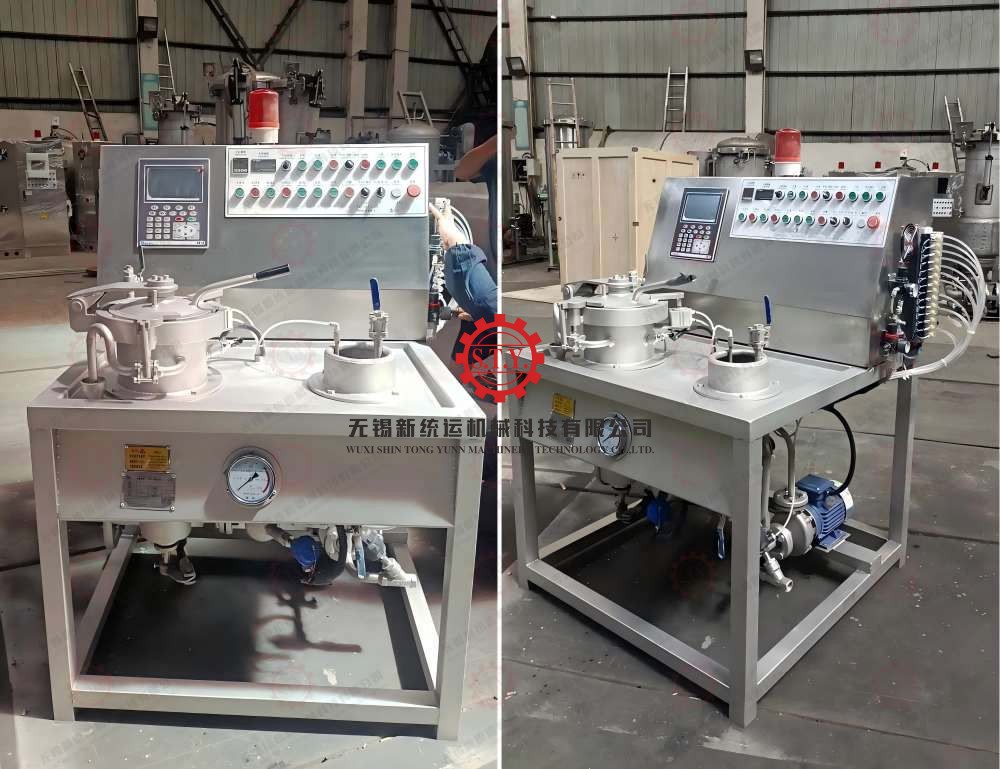

Overview of DF241-21 HTHP Small Cone Dyeing Machine
DF241-21 small capacity cone dyeing machine is used for laboratory-scale yarn dyeing solution for textile manufacturers, dye houses and R&D centers. According Wuxi Shin Tong Yunn Machinery 25+ years production experience of industrial dyeing equipment, the compact sample dyeing machine delivers more better dyeing accuracy in cone yarn dyeing processes, realizing seamless scale-up from lab to mass production.
Key Features & Technical Advantages: Precision Sample Dyeing for Yarn
Advanced Cone Dyeing Technology
- Flexibility Capacity Chioce: Process 1kg, 2kg, 3kg or 5kg cone dyeing samples – ideal for small-batch yarn dyeing R&D and pilot-scale textile testing.
- 140°C High-Temp Performance: Simulates high-pressure yarn dyeing conditions for polyester, nylon, blends and technical fibers.
Integrated Compact Design
- All-in-One Dyeing Unit: Space-saving dyeing equipment with unified control-dyeing vessel structure simplifies textile lab workflows.
- Safety Control: Industrial-grade pressure vessel with triple leak protection for safe laboratory dyeing operations.
True Production Replication
- ±0.5°C PID Control: Ensures consistent yarn dyeing results matching bulk production parameters.
- Reverse Flow System: Achieves uniform dye penetration in cone dyeing – critical for low-color-difference sample development.
Sustainable Textile Solutions
- 1:5 Low Liquor Ratio: Reduces water/chemical consumption in eco-friendly yarn dyeing processes.
- Repeatable Dyeing Trials: Minimizes material waste in textile sample development.
Optimized Applications
- Cone Sample Dyeing for R&D: Validate dyes/chemicals before bulk industrial yarn dyeing
- Production Process Simulation: Test high-temperature textile dyeing recipes risk-free
- Troubleshooting Dyeing Defects: Diagnose yarn color inconsistency issues at micro-scale
- Educational Textile Dyeing Equipment: Train technicians on automated cone dyeing systems
Technical Specifications of 1-5KG small capacity cone yarn dyeing machine
| Parameter |
Detail |
| Machine Type |
Laboratory Cone Dyeing Machine (steam heating) |
| Capacity |
1KG, 2KG, 3KG, 4KG, 5KG can be choosen |
| Max. Design Temperature |
140°C (284°F) |
| Max. Pressure |
0.35Mpa |
| Control System |
Smart dyeing controller+touch screen |
| Power Supply |
380V 50Hz (Global Voltage Options Available) |
* Standard cone yarn size: outer diameter 165mm X height 160mm, weight is calculated as 1KG per pc.
Why Textile Dyeing Manucfacturer Choose Wuxi Shin Tong Yunn Machinery
- 25+ Years Dyeing Machinery Specialization: Proven expertise in industrial textile dyeing equipment manufacturing
- Bulk Production Accuracy: Our lab-to-production dyeing technology reduces bulk batch rejection by 63%
- Global Support Network: Technical assistance for automated dyeing systems across 18 countries
Upgrade Your Dye Lab Precision Today!
DF241 HIGH TEMPERATURE HIGH PRESSURE PACKAGE YARN DYEING MACHINE
| MODEL |
SPINDLE X LAYER |
NO. OF PACKAGES |
MAIN POWER(KW) |
| DF241-21 |
1 X (3-5) |
3-5 |
2.2 |
| DF241- 40 |
3 X 4 |
12 |
3.7 |
| DF241- 43 |
4 X 4 |
16 |
5.5 |
| DF241- 43 |
4 X 5 |
20 |
5.5 |
| DF241- 53 |
6 X 5 |
30 |
7.5 |
| DF241- 75 |
12 X 6 |
72 |
11 |
| DF241- 85 |
18 X 6 |
108 |
15 |
| DF241- 85 |
18 X 7 |
126 |
15 |
| DF241- 90 |
19 X 8 |
152 |
18.5 |
DF241- 110
|
28 X 8 |
224 |
22 |
DF241- 120
|
36 X 7 |
252 |
22 |
DF241- 120
|
36 X 8 |
288 |
30 |
DF241- 130
|
39 X 9 |
351 |
37 |
| DF241- 140 |
46 X 9 |
414 |
37 |
DF241- 160
|
62 X 9 |
558 |
55 |
DF241- 170
|
69 X 10 |
690 |
55 |
DF241- 186
|
90 X 10 |
900 |
75 |
DF241- 200
|
108 X10 |
1080 |
90 |
DF241- 200
|
108 X 11 |
1188 |
90 |
DF241- 200
|
125 X 11 |
1375 |
110 |
